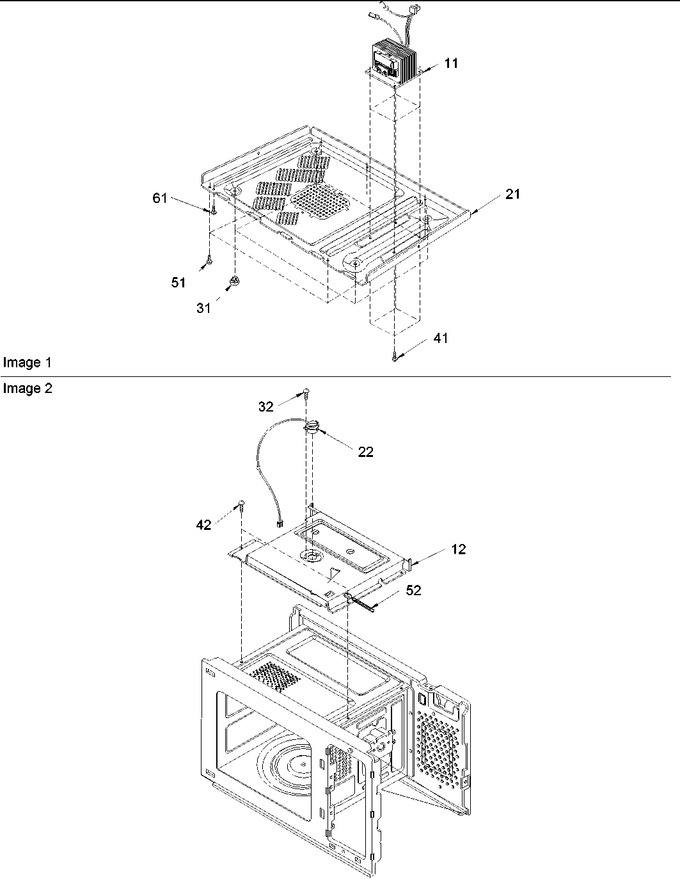

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R9900405		Transformer, H.v.		Appelez-nous	-
12	R0130675		Tunnel, Air		Appelez-nous	-
21	R0131026		Plate, Base		Appelez-nous	-
22	R0131018		Assy,sensor		Appelez-nous	-
31	R0131027		Cap		Appelez-nous	-
32	R0654029		Screw, Pan Hd S/tap		Appelez-nous	-
41	4344826		Screw,tap Tite(s)-binding Head   (Replaces: R0131029)				$ 14.31
42	R0654038		Screw, Truss Hd S/tap		Appelez-nous	-
51	4344826		Screw, Bining Hd S/tap   (Replaces: R0654028)				$ 14.31
52	R0131047		Holder, Wire		Appelez-nous	-
61	R0654138		Rod, Release		Appelez-nous	-
