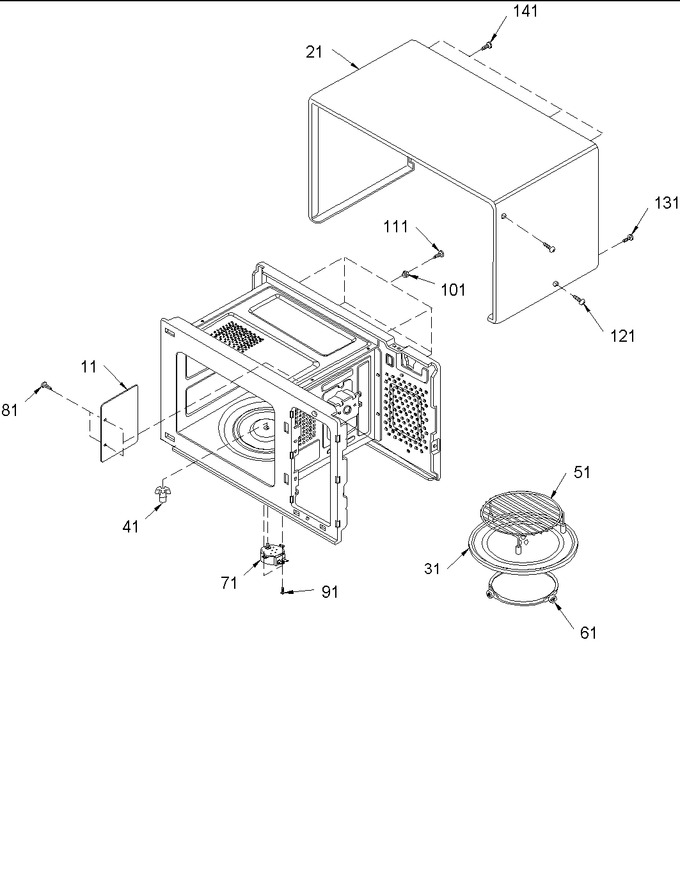

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base & Sensor
02 - Door & Controller
03 - Interior
04 - Latch Board
05 - Miscellaeous Information
06 - Oven Cavity
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0130667 | Canopy, Mica |
|
- | |||||
| 21 | R0130668 | Wrapper, Outer (blk) |
|
- | |||||
| 31 | WP8172138 | Tray, Glass (Replaces: R9800455) |
|
$ 87.23 | |||||
| 41 | R0130605 | Shaft, Turn Table |
|
$ 25.10 | |||||
| 51 | R0130674 | Shelf |
|
- | |||||
| 61 | R0130677 | Ring, Rotating Assy |
|
- | |||||
| 71 | R0130678 | Motor, Turntable |
|
- | |||||
| 81 | R0131031 | Screw Tapping,truss Head |
|
- | |||||
| 91 | R0654180 | Screw, Pan Hd |
|
- | |||||
| 101 | R0654026 | Nut, Hex |
|
- | |||||
| 111 | R0131028 | Screw Tapping,truss Head |
|
- | |||||
| 121 | R9800309 | Screw, Tap Th |
|
- | |||||
| 131 | R9900401 | Screw |
|
- | |||||
| 141 | R0654038 | Screw, Truss Hd S/tap |
|
- |
