01 - Door & Control Panel


02 - Installation


03 - Interior


04 - Interior & Latch Board


05 - Oven Cavity


06 - Supplemental Information


07 - Wiring Information


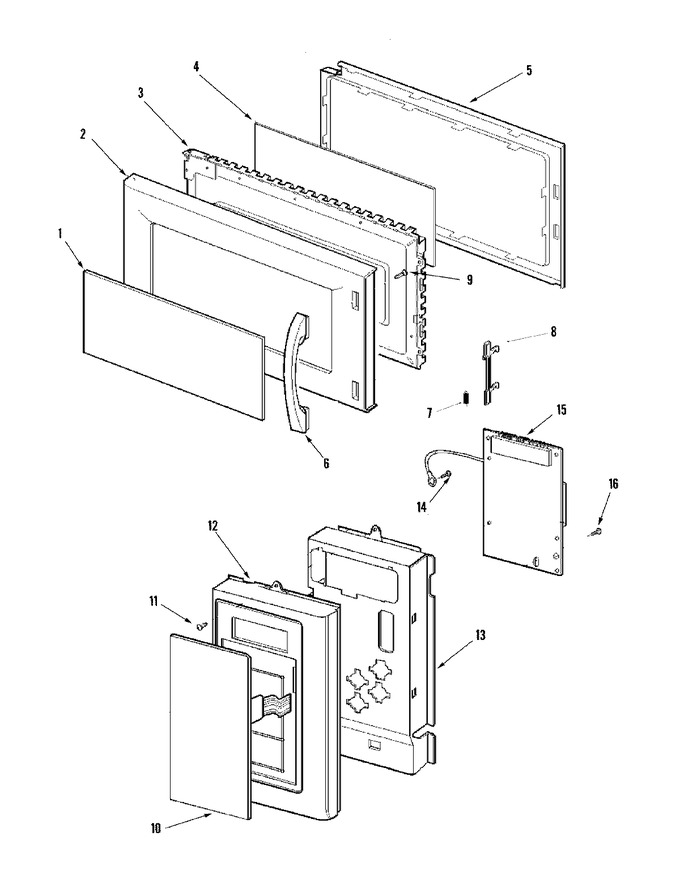

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R0131480		Glass, Door (blk)	10	Appelez-nous	-
2	R9900257		Panel, Door (blk)	10	Appelez-nous	-
3	R9900240		Frame, Door	10	Appelez-nous	-
4	WPW10146437		Tape, Seal   (Replaces: R9900242)	10			$ 79.74
5	R9900246		Cover, Choke	10	Appelez-nous	-
6	R9900253		Handle, Door (blk)	10	Appelez-nous	-
7	R0131481		Spring, Latch	10	Appelez-nous	-
8	R9900260		Latch, Door	10	Appelez-nous	-
9	R0131246		Screw, Tapping Truss Head	10	Appelez-nous	-
10	R0131482		Switch, Membrane (blk)	10	Appelez-nous	-
11	R9800359		Screw, Tap Th	10	Appelez-nous	-
12	R9900249		Panel, Control (blk)	10	Appelez-nous	-
13	R9900262		Bracket, Control Panel	10	Appelez-nous	-
14	R0654183		Screw, Truss Hd	10	Appelez-nous	-
15	R0131484		Board, Control	10	Appelez-nous	-
16	R0654183		Screw, Truss Hd	10	Appelez-nous	-
