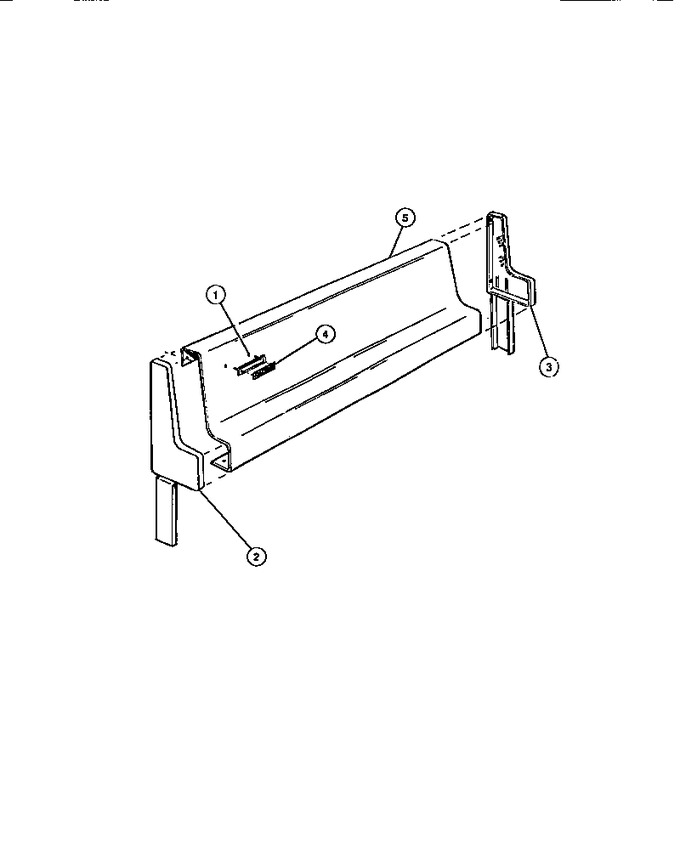

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 2 | 3202801 | Cap-backguard End, Left Hand |
|
- | |||||
| 3 | 3202802 | Cap-backguard End, Right Hand |
|
- | |||||
| 4 | 5303212494 | Nameplate |
|
- | |||||
| 5 | 3051198 | Panel-backguard, Almond |
|
- | |||||
| *89160 | 5303131215 | Fastener-twist Nut |
|
- |
