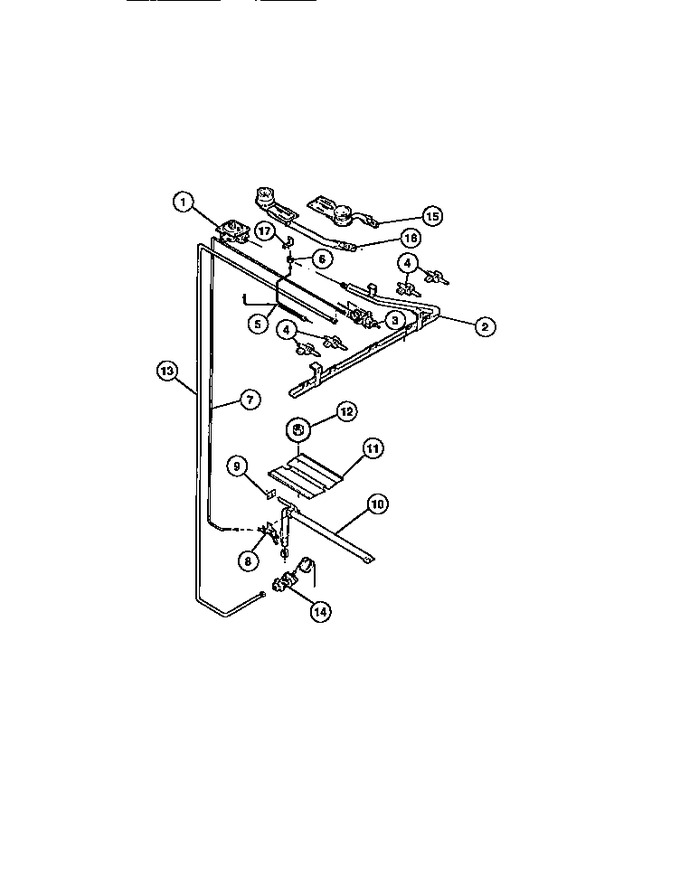

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Cooktop
04 - Oven Door
05 - Broiler Drawer
06 - Body
07 - Burners
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303016997 | Control-regulator |
|
- | |||||
| 2 | 3204972 | Manifold - Pipe |
|
- | |||||
| 3 | 3204974 | Thermostat |
|
- | |||||
| 4 | 3204499 | Screw - Valves (10) (non-illustrated) |
|
- | |||||
| 4 | 3202796 | Valve-top 2 Positions (4) |
|
- | |||||
| 5 | 5303211133 | Top Pilot-dual With Filter |
|
$ 88.20 | |||||
| 6 | 5303211191 | Cap-top Pilot |
|
$ 35.75 | |||||
| 7 | 3203398 | Tube-aluminum Thermostat |
|
- | |||||
| 8 | 3203395 | Pilot - Oven |
|
- | |||||
| 9 | 3018603 | Bracket-oven Burner |
|
- | |||||
| 10 | 3203391 | Burner - Oven |
|
- | |||||
| 11 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 12 | 154079601 | Nut-baffle (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 13 | 5303211134 | Tube-aluminum Thermostat/safety Valve With Filter |
|
- | |||||
| 14 | 3204583 | Valve - Safety |
|
- | |||||
| 15 | 3204958 | Burner, Top Front (2) |
|
- | |||||
| 16 | 3204960 | Burner, Top Rear (2) |
|
- | |||||
| 17 | 3202798 | Shield-pilot (2) |
|
$ 55.18 |
