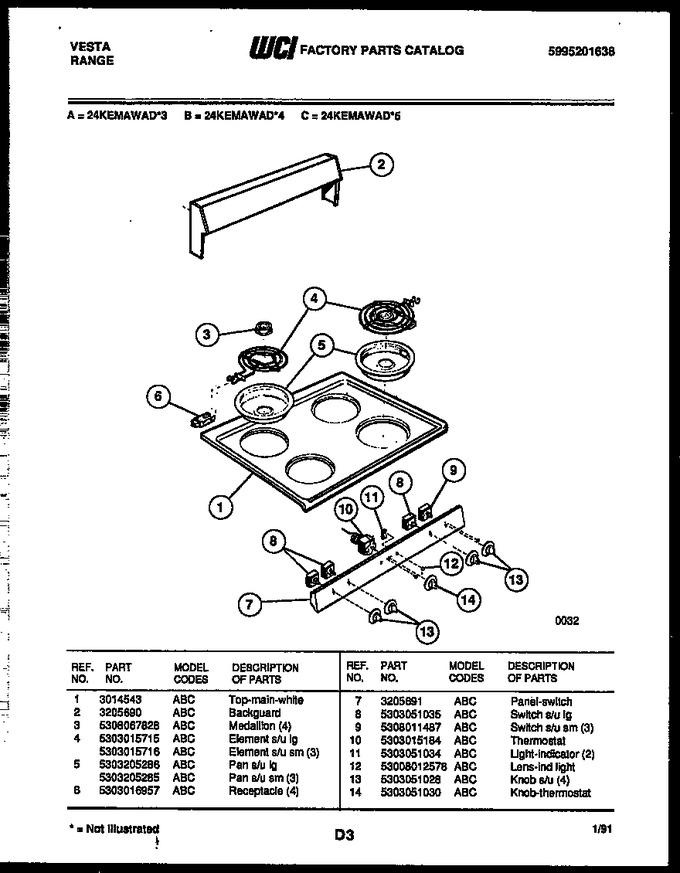

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Body Parts
05 - Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014543 | Top-main-white |
|
- | |||||
| 2 | 3205690 | Backguard |
|
- | |||||
| 3 | 5308067828 | Medallion (4) |
|
- | |||||
| 4 | 316442300 | Element S/u Lg (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 5 | 5303205286 | Pan S/u Lg |
|
- | |||||
| 6 | 5303016957 | Receptacle (4) |
|
- | |||||
| 7 | 3205691 | Panel-switch |
|
- | |||||
| 8 | 5303051035 | Switch S/u Lg |
|
- | |||||
| 9 | 5308011487 | Switch S/u Sm (3) |
|
- | |||||
| 10 | 5303015184 | Thermostat |
|
- | |||||
| 11 | 5303051034 | Light-indicator (2) |
|
- | |||||
| 12 | 53008012578 | Lens-ind Light |
|
- | |||||
| 13 | 5303051028 | Knob S/u (4) |
|
- | |||||
| 14 | 5303051030 | Knob-thermostat |
|
- | |||||
| 4A | 318372210 | Element S/u Sm (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 5A | 5303205285 | Pan S/u Sm (3) |
|
- |
