02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Body Parts


05 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303051061		Panel-side White (2)		Appelez-nous	-
2	3051063		Grommet (2)		Appelez-nous	-
3	3205587		Grommet (4)		Appelez-nous	-
4	3203613		Back-main		Appelez-nous	-
5	3203615		Cover-wire		Appelez-nous	-
6	3205692		Burner-box		Appelez-nous	-
7	3051096		Support,oven Rear		Appelez-nous	-
8	3051064		Tube Oven Vent		Appelez-nous	-
9	3016533		Liner-oven Rh		Appelez-nous	-
10	3016945		Panel-bottom		Appelez-nous	-
11	3016946		Insulation-wrap		Appelez-nous	-
12	3016947		Insulation-back		Appelez-nous	-
13	5304409888		Block, Terminal   (Replaces: 5306563359)			Immediately	$ 26.69
14	3205588		Support-conduit		Appelez-nous	-
15	5303009292		Element-bake		Appelez-nous	-
16	5303009293		Element-broil		Appelez-nous	-
17	5303009445		Support-broil Element		Appelez-nous	-
19	318175510		Leg-leveling (4)   (Replaces: 5303210257)			Immediately	$ 24.26
20	5303016973		Pan-broiler		Appelez-nous	-
21	5303017712		Insert-broiler		Appelez-nous	-
22	3016951		Shield		Appelez-nous	-
23	5303051079		Spring-door (2)		Appelez-nous	-
24	5303204670		Hinge Assy-rh		Appelez-nous	-
25	5303016128		Rack-oven (2)		Appelez-nous	-
26	5308013916		Seal-door		Appelez-nous	-
27	3016950		Support-control Panel		Appelez-nous	-
28	3203612		Frame-front		Appelez-nous	-
*28769	3934059		Anti-tip Kit		Appelez-nous	-
*28769	19100210113		Wiring Diagram (not For Purchase)		Appelez-nous	-
18A	5303210256		Base Rail Lh (1)		Appelez-nous	-
18B	5303210255		Base Rail Rh (1)		Appelez-nous	-
24A	5303204672		Hinge Assy-lh		Appelez-nous	-
9A	3017599		Liner-oven Lh		Appelez-nous	-
9B	3017600		Liner-oven Top		Appelez-nous	-
9C	3017597		Liner-oven Bottom		Appelez-nous	-
9D	3017598		Liner-back		Appelez-nous	-

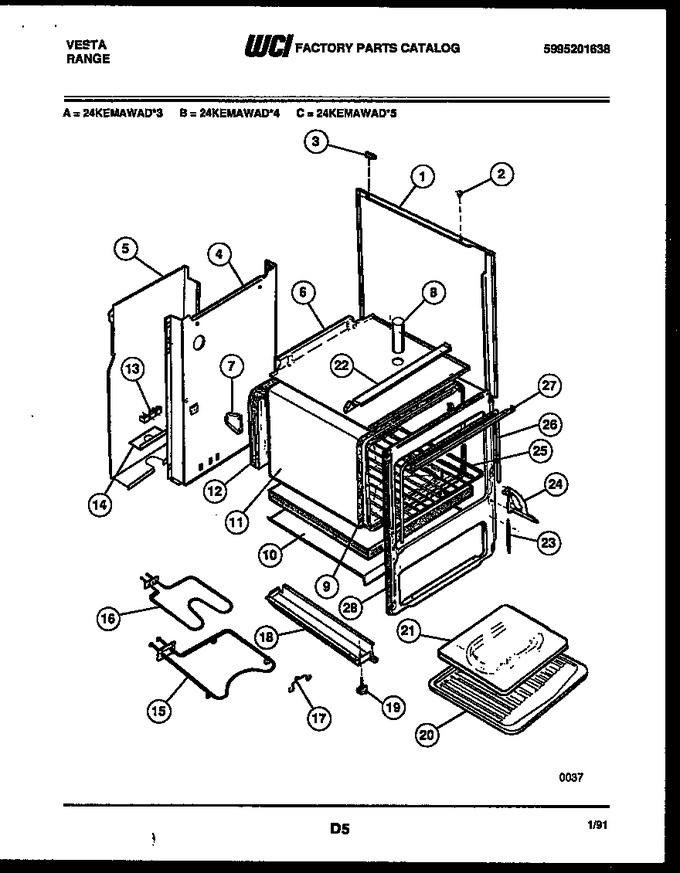

    View Diagram in Separate Window       Print Part List
