01 - Cover
02 - Backguard
03 - Cooktop
04 - Oven Door
05 - Broiler Drawer
06 - Burners
07 - Body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

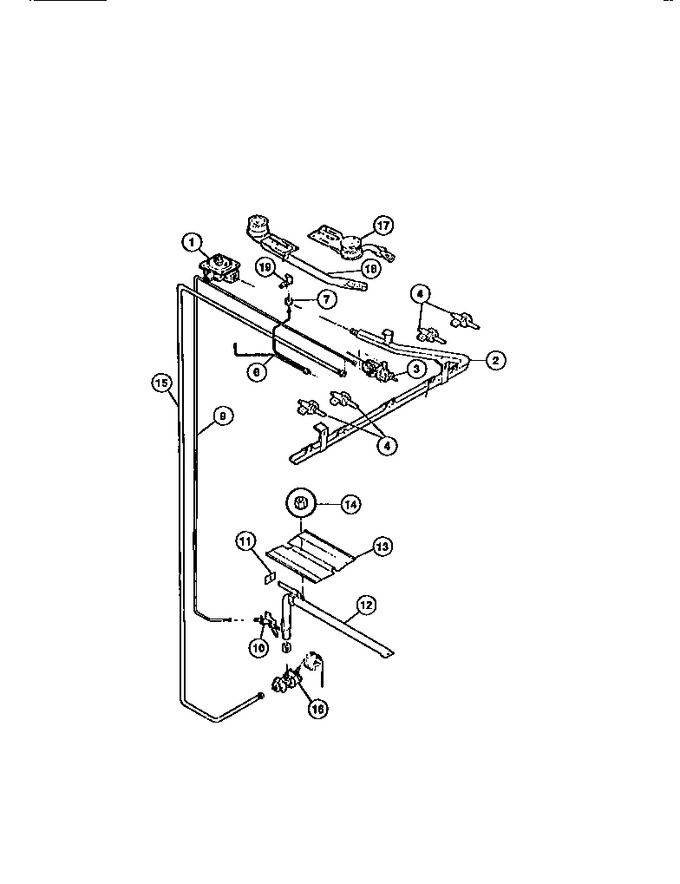

| 1 | 5303016997 | Control-regulator |
|
- | |||||
| 2 | 5303280588 | Manifold-pipe |
|
- | |||||
| 3 | 316052000 | Thermostat |
|
- | |||||
| 4 | 316031700 | Valve-top 2 Positions With Screw (4) |
|
- | |||||
| 6 | 5303211133 | Tube-top Pilot-dual |
|
$ 88.20 | |||||
| 7 | 5303211191 | Cap-top Pilot |
|
$ 35.75 | |||||
| 9 | 3203398 | Tube-aluminum Thermostat |
|
- | |||||
| 10 | 5303280589 | Pilot,oven |
|
$ 107.89 | |||||
| 11 | 3018603 | Bracket-oven Burner |
|
- | |||||
| 12 | 5303280585 | Burner-oven |
|
- | |||||
| 13 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 14 | 154079601 | Nut-baffle (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 15 | 5303280592 | Tube, Aluminum, Thermostat/safety Valve With Fitting |
|
- | |||||
| 16 | 5303280593 | Valve,safety |
|
$ 405.51 | |||||
| 17 | 5304506427 | Burner-top Front (2) (Replaces: 316039002) |
|
$ 101.63 | |||||
| 18 | 5304506426 | Burner-top Rear (2) (Replaces: 316039003) |
|
$ 100.05 | |||||
| 19 | 3202798 | Shield-pilot (2) |
|
$ 55.18 |
