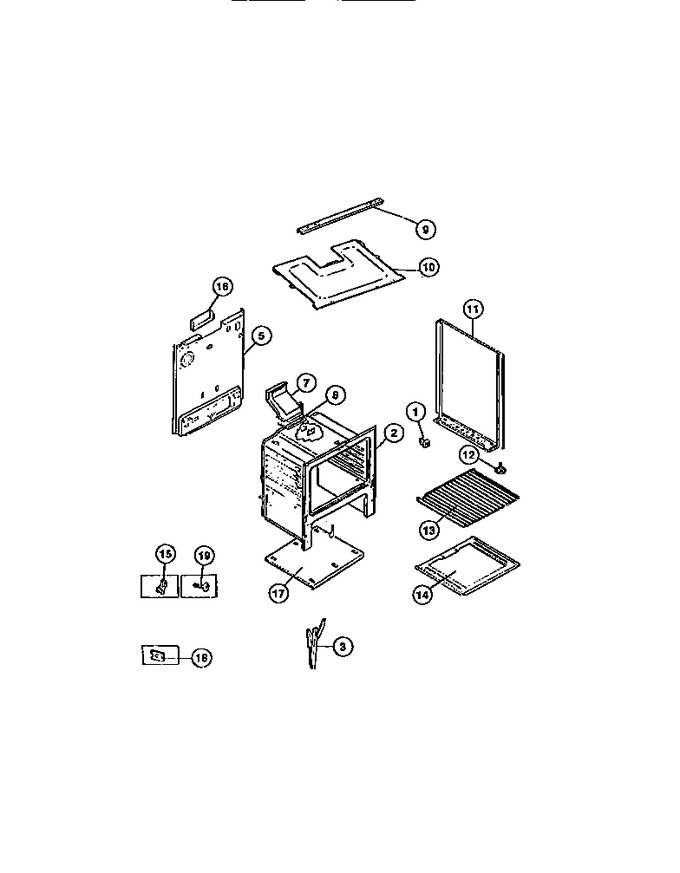

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer,bodyside				$ 3.62
3	316007001		Channel-door Hinge (2)				$ 234.55
5	3203082		Back-main		Appelez-nous	-
7	3131909		Flue		Appelez-nous	-
8	08067965		Gasket-flue		Appelez-nous	-
9	3203394		Channel-burner Support		Appelez-nous	-
10	3204962		Burner Box		Appelez-nous	-
11	5303269518		Panel Bodyside Rh-white		Appelez-nous	-
11	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
11	5303269519		Panel-bodyside-lh-white		Appelez-nous	-
11	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
12	5303203397		Screw, Leveling (4)				$ 14.49
13	5303281625		Rack		Appelez-nous	-
14	5303212540		Bottom, Oven		Appelez-nous	-
15	5303284616		Clip-thermostat Bulb				$ 9.86
16	3131191		Cover, Flue		Appelez-nous	-
17	5303281627		Base-broil		Appelez-nous	-
18	3203010		Fastener - 8 ``u`` Type (2)   (Replaces: 5303012323)				$ 14.89
19	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
*35844	5303288460		Tee-nut Fastener				$ 27.14
*35845	3051218		Plate,oven Light		Appelez-nous	-
*35846	5303015372		Cover, Front Main		Appelez-nous	-
*35847	3018607		Cover Plate				$ 10.50
*35848	3934056		Anti-tip Bracket		Appelez-nous	-
*35849	3202799		Shield, Flue		Appelez-nous	-
*35850	3017142		Insulation-oven Wrap				$ 193.50
*35851	3204582		Insulation-back		Appelez-nous	-
*35852	3014226		Support		Appelez-nous	-
