New Model Search:

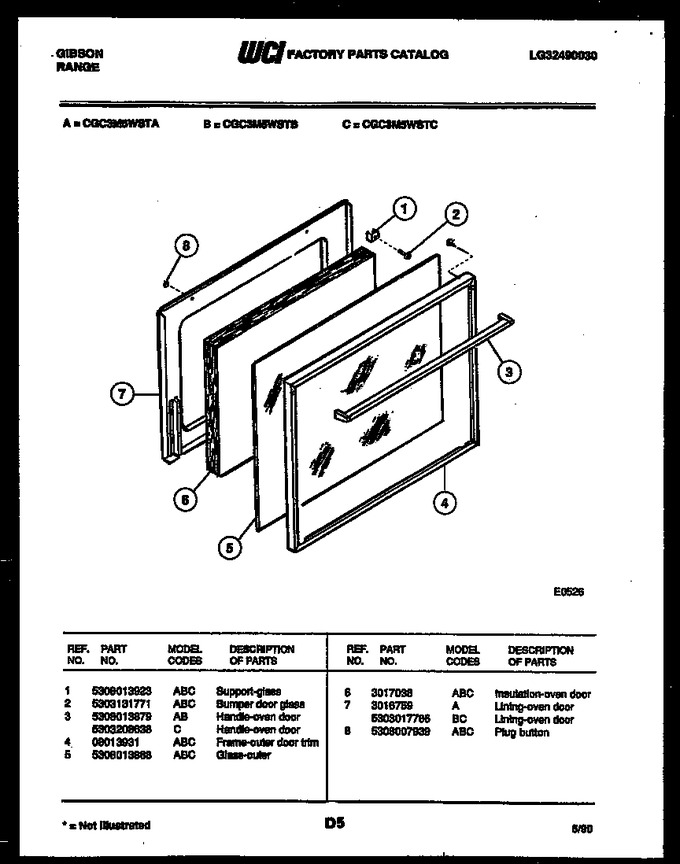

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013923 | Support-glass |
|
- | |||||
| 2 | 5303131771 | Bumper-door Glass |
|
- | |||||
| 3 | 5308013879 | Handle-oven Door |
|
- | |||||
| 4 | 08013931 | Frame-outer Door Trim |
|
- | |||||
| 5 | 5308013868 | Glass Outer |
|
- | |||||
| 6 | 3017038 | Insulation - Oven Door |
|
- | |||||
| 7 | 3016759 | Lining-oven Door |
|
- | |||||
| 8 | 5308007939 | Plug-button |
|
- |
