02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

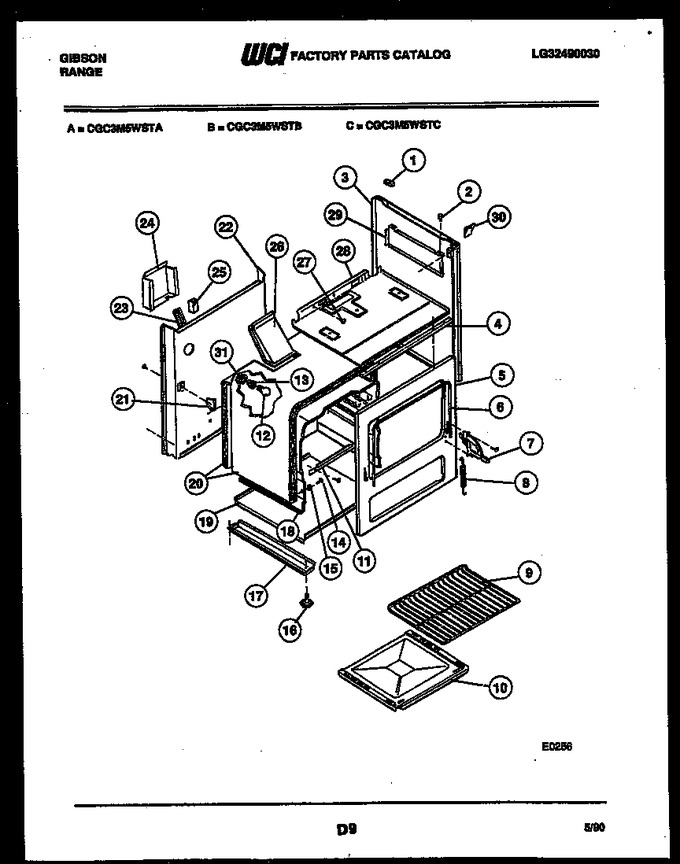

| 1 | 3051063 | Grommet-main Tp (2) |
|
- | |||||
| 2 | 3016129 | Grommet (2) |
|
- | |||||
| 3 | A64013003 | Body Side Panel (wheat) |
|
- | |||||
| 3 | 5303051061 | Bodyside Panel-white |
|
- | |||||
| 3 | 5364013004 | Body Side Panel (almond) |
|
- | |||||
| 4 | 3131811 | Support Control Pnl |
|
- | |||||
| 5 | A98334001 | Front Frame |
|
- | |||||
| 6 | 5308008022 | Seal,oven Door |
|
$ 124.89 | |||||
| 7 | 5303204670 | Oven Door Hinge-rh |
|
- | |||||
| 8 | 5303009435 | Spring Oven Door (2) |
|
- | |||||
| 9 | 5303015714 | Rack Oven (2) |
|
- | |||||
| 10 | A51103003 | Oven Bottom |
|
- | |||||
| 11 | 3131038 | Support-oven Btm |
|
- | |||||
| 12 | 5303001179 | Bulb-oven Light |
|
- | |||||
| 13 | 5303009410 | Recept-oven Light |
|
- | |||||
| 14 | 08008037 | Shoulder-bolt |
|
- | |||||
| 15 | 3131040 | Washer |
|
- | |||||
| 16 | 5308008041 | Leveling Leg |
|
- | |||||
| 17 | 5308068047 | Base Rail |
|
- | |||||
| 18 | 5308013975 | Lining-oven Rh |
|
- | |||||
| 19 | 3011645 | Bottom - Main |
|
- | |||||
| 20 | 3017171 | Insulation - Wrap |
|
- | |||||
| 21 | 3051096 | Support-oven |
|
- | |||||
| 22 | 5303013340 | Main Back |
|
- | |||||
| 23 | 3131046 | Wire Channel-main Back |
|
- | |||||
| 24 | 08013953 | Cover-spark Module |
|
- | |||||
| 25 | 5303200669 | Module-spark |
|
- | |||||
| 26 | 3017173 | Vent Box |
|
- | |||||
| 27 | 08008051 | Bushing - Nylon Snap |
|
- | |||||
| 28 | 11080000 | Bottom-burner Box |
|
- | |||||
| 29 | 5303131053 | Shield-heat Rh Side |
|
- | |||||
| 30 | 3131791 | Clip-backsplash |
|
$ 19.01 | |||||
| 31 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 18A | 08013976 | Lining Oven Lh |
|
- | |||||
| 18B | 080138985 | Lining-oven Top |
|
- | |||||
| 18C | 08014566 | Lining-oven Back |
|
- | |||||
| 20A | 3017172 | Insulation - Back |
|
- | |||||
| 29A | 5303131054 | Shield-heat Lh Side |
|
- | |||||
| 7A | 5303204672 | Oven Door Hinge-lh |
|
- |
