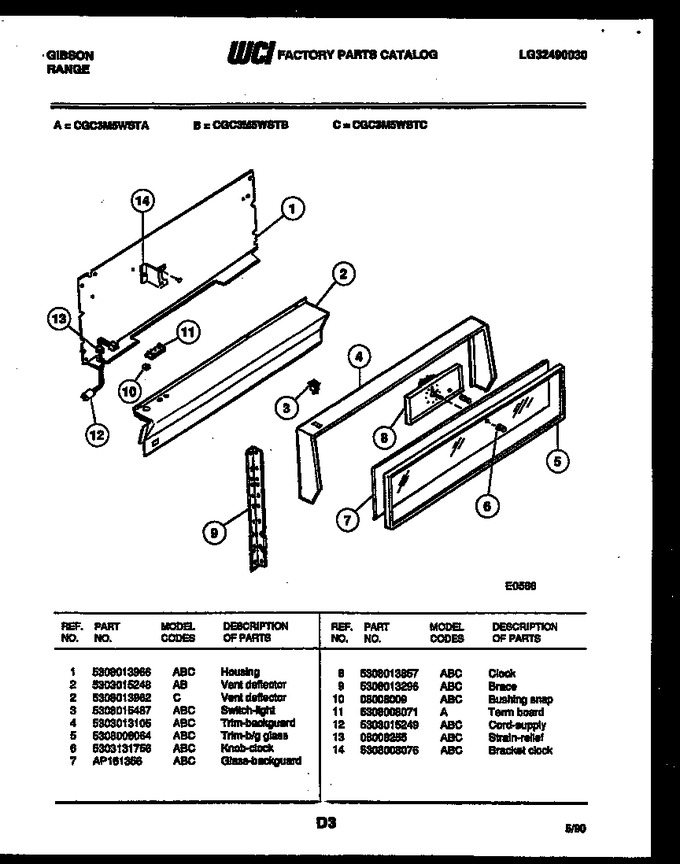

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308013966 | Housing |
|
- | |||||
| 2 | 5308013962 | Vent-deflector |
|
- | |||||
| 3 | 5308015487 | Switch - Light |
|
$ 61.43 | |||||
| 4 | 5303013105 | Trim-backguard |
|
- | |||||
| 5 | 5308008064 | Trim-b/g Glass |
|
- | |||||
| 6 | 5303131756 | Knob - Clock |
|
- | |||||
| 7 | AP161356 | Glass-backguard |
|
- | |||||
| 8 | 5308013857 | Clock |
|
- | |||||
| 9 | 5308013296 | Brace |
|
- | |||||
| 10 | 08008009 | Bushing,snap |
|
- | |||||
| 12 | 5303015249 | Cord-supply |
|
- | |||||
| 13 | 08008255 | Strain - Relief |
|
- | |||||
| 14 | 5308008076 | Bracket - Clock |
|
- |
