Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303017712 Grid-broiler Pan Appelez-nous -
2 5303016973 Pan-broiler Appelez-nous -
3 3018283 Drawer-broiler Assy. Appelez-nous -
4 5303018344 Liner-broiler Drawer Appelez-nous -
5 3017184 Insulation, Broiler Drawer Appelez-nous -
6 3051038 Nut-handle (2) Appelez-nous -
7 08008083 Panel-broiler Drawer (wheat) Appelez-nous -
7 3017169 Panel-broiler Drawer White Appelez-nous -
7 08008084 Panel-broiler (almond) Appelez-nous -
8 5303051041 Spacer-handle (2) Appelez-nous -
9 5308013882 Handle-door Appelez-nous -
10 5303051043 Screw-handle (2) Appelez-nous -
11 5303131029 Hinge-broiler Drawer-lh Appelez-nous -
11 3131028 Hinge-broiler Drawer-rh Appelez-nous -
12 5303131030 Spring-broiler Drawer Appelez-nous -
13 5303051055 Track-broiler Side Rh Special Order $ 56.60

13 5303051056 Track-broiler Side Lh Special Order $ 78.44

14 5303051057 Roller-nylon (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

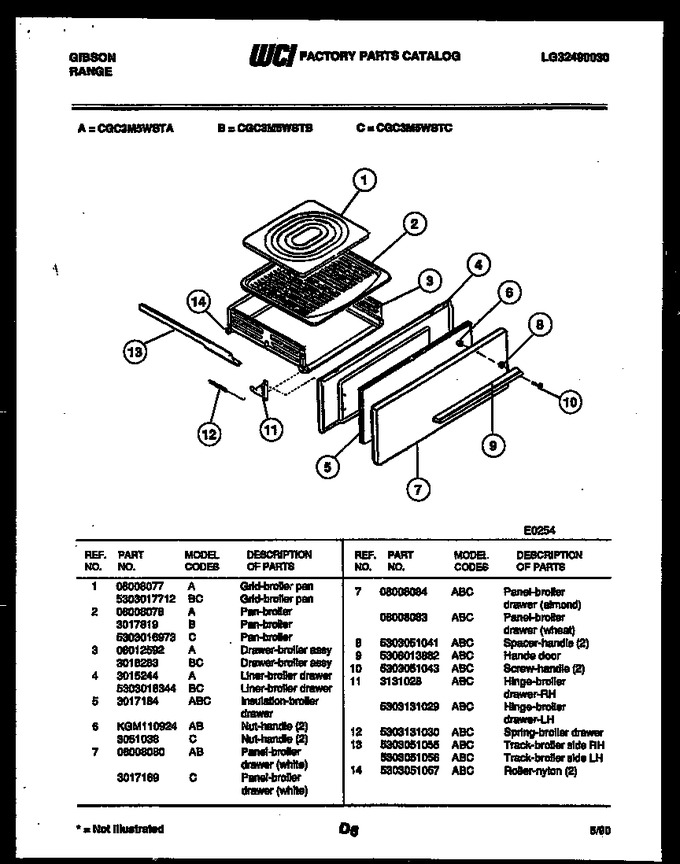

Diagram for CGC3M5WSTC
