SELECT A DIAGRAM

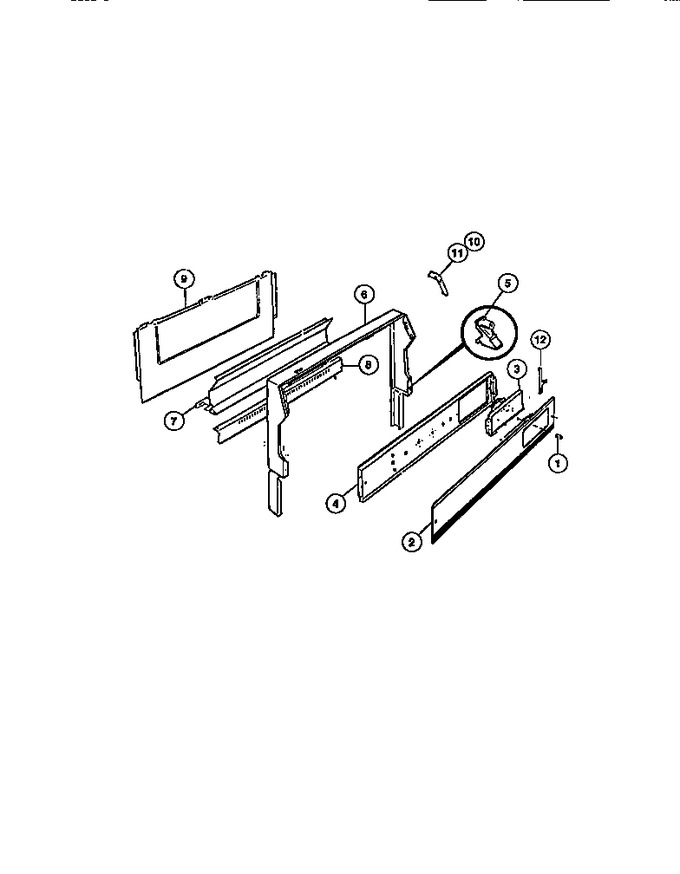

02 - Backguard
03 - Cooktop
04 - Broiler Drawer
05 - Oven Door
06 - Burners
07 - Body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131472 | Knob-clock |
|
- | |||||
| 2 | 5303212559 | Panel-control |
|
- | |||||
| 3 | 5303212519 | Clock-single Stem |
|
- | |||||
| 4 | 5303274449 | Plate-instrument Mounting |
|
- | |||||
| 5 | 5303131237 | Support, Backguard |
|
- | |||||
| 6 | 3131238 | Trim, Wrapper |
|
- | |||||
| 7 | 5303212535 | Trim-splasher-almond |
|
- | |||||
| 8 | 3131241 | Trim-vent |
|
- | |||||
| 9 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 10 | 3131229 | Cap-end-left Hand |
|
- | |||||
| 11 | 3131230 | Cap-end-right Hand |
|
- | |||||
| 12 | 3131240 | Trim-glass Retainer, (2) |
|
- |
