SELECT A DIAGRAM
02 - Backguard
03 - Cooktop
04 - Broiler Drawer
05 - Oven Door
06 - Burners
07 - Body
SELECT A DIAGRAM
New Model Search:

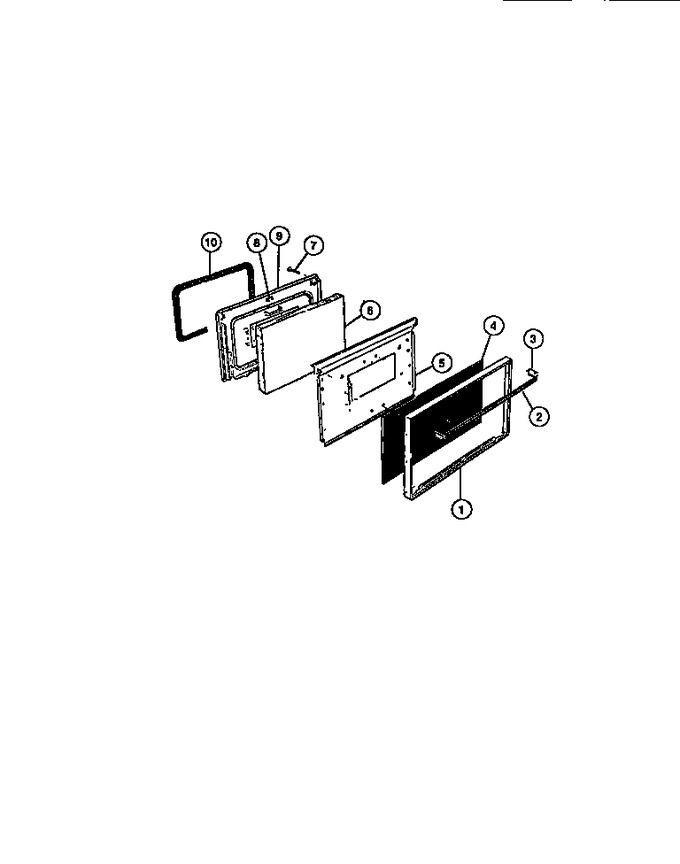

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 5303273127 | Handle |
|
- | |||||
| 3 | 3016755 | Cap, End (2) |
|
- | |||||
| 4 | 5303051153 | Glass-front |
|
- | |||||
| 5 | 5303209317 | Shield-wool |
|
- | |||||
| 6 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 7 | 5303281378 | Screw, Handle (2) |
|
$ 13.60 | |||||
| 8 | 5303015373 | Cover-door Liner |
|
- | |||||
| 9 | 5303209318 | Liner-oven Door |
|
- | |||||
| 10 | 5303202011 | Seal, Door |
|
$ 166.84 |
