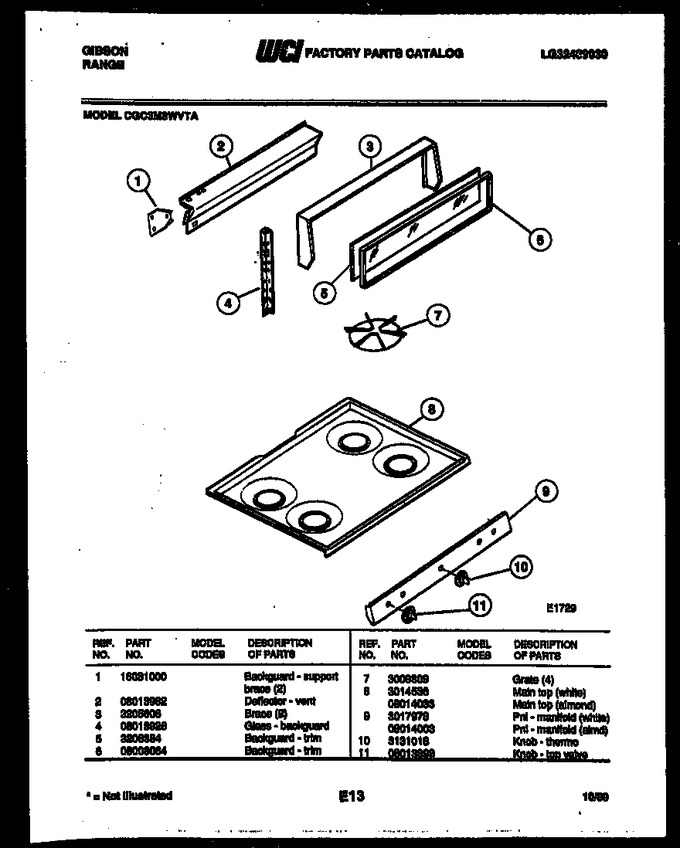

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 16031000 | Backguard - Support Brace (2) |
|
- | |||||
| 2 | 08013962 | Deflector - Vent |
|
- | |||||
| 3 | 3205606 | Brace (2) |
|
- | |||||
| 4 | 08013926 | Glass - Backguard |
|
- | |||||
| 5 | 3206384 | Backguard - Trim |
|
- | |||||
| 6 | 08008064 | Backguard Trim |
|
- | |||||
| 7 | 3009309 | Grate (4) |
|
- | |||||
| 8 | 3014536 | Main Top (white) |
|
- | |||||
| 8 | 08014033 | Main Top (almond) |
|
- | |||||
| 9 | 08014003 | Pnl - Manifold (almd) |
|
- | |||||
| 9 | 3017978 | Pnl - Manifold (white) |
|
- | |||||
| 10 | 3131018 | Knob - Thermo |
|
- | |||||
| 11 | 08013898 | Knob - Top Valve |
|
- |
