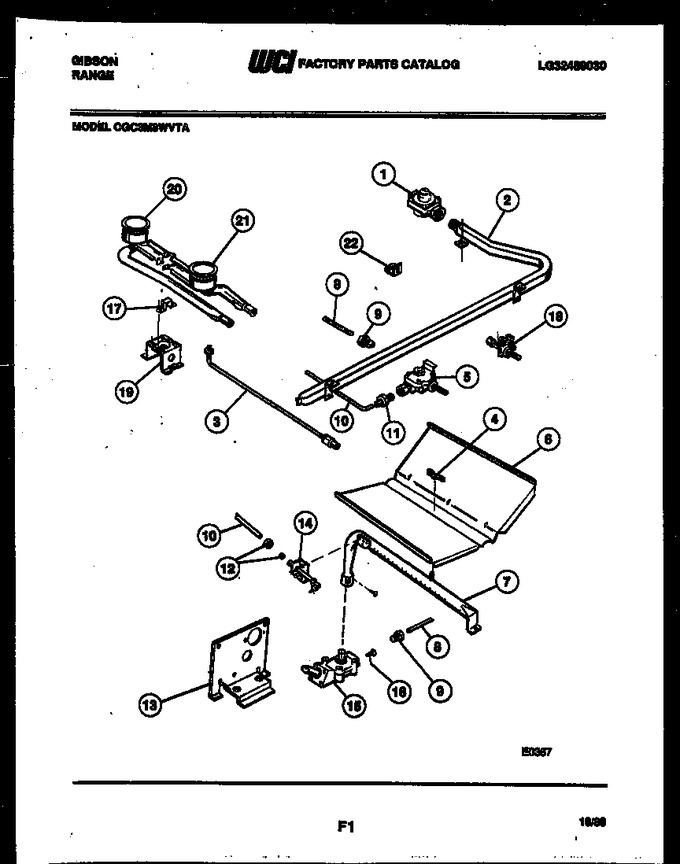

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007974 | Pressure Regulator |
|
- | |||||
| 2 | 3017164 | Manifold Pipe |
|
- | |||||
| 3 | 3131075 | Pilot - Top Burners (2) |
|
- | |||||
| 4 | 08007979 | Nut - Wing |
|
- | |||||
| 5 | 08013927 | Thermostat |
|
- | |||||
| 6 | 3131061 | Baffle - Burner |
|
- | |||||
| 7 | 08013855 | Burner-oven |
|
- | |||||
| 8 | 3131063 | Tube - Feed Oven |
|
- | |||||
| 9 | 08008363 | Loxit - Nut |
|
- | |||||
| 10 | 3009490 | Tube-pilot Feed Oven |
|
- | |||||
| 11 | 3131074 | Loxit - Nut |
|
- | |||||
| 12 | 3131072 | Nut & Compession |
|
- | |||||
| 13 | 3131069 | Support - Valve |
|
- | |||||
| 14 | 3205598 | Pilot-oven |
|
- | |||||
| 15 | 08013942 | Valve - Safety |
|
- | |||||
| 16 | 3131067 | Screw (2) |
|
- | |||||
| 17 | 3131078 | Shield-pilot |
|
- | |||||
| 18 | 3131057 | Valve - Top Burner (4) |
|
- | |||||
| 19 | 3016870 | Support-top Burner (2) |
|
- | |||||
| 20 | 3131079 | Burner - Rear (2) |
|
- | |||||
| 21 | 3131080 | Burner - Front (2) |
|
- | |||||
| 22 | 9126 | Clip - Capillary (2) |
|
