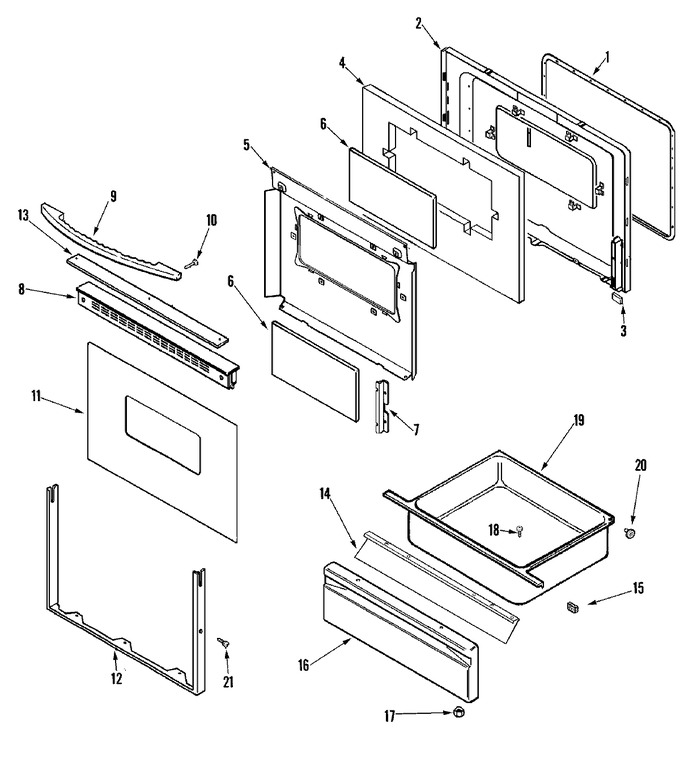

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
2	74004972		Lining, Oven Door	10	Appelez-nous	-
3	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
4	74001842		Insulation, Door	10	Appelez-nous	-
5	74001843		Baffle, Door	10	Appelez-nous	-
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74003320		Glass, Inner	10			$ 86.35
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
7	74001844		Retainer, Glass	10	Appelez-nous	-
8	8270P090-60		Tape, Foil (3`` Wide)	10	Appelez-nous	-
9	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
9	74006668		Handle, Door (wht)	10	Appelez-nous	-
10	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74006874		Glass, Outer Door (wht)	10	Appelez-nous	-
12	74004839		Frame W/tape Assy	10	Appelez-nous	-
13	7728P094-60		Insert, Door Trim (wht)	10			$ 82.40
14	2404F030-51		Lining, Drawer Panel	10	Appelez-nous	-
14	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
15	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
16	74003407		Panel, Drawer (wht)	10	Appelez-nous	-
17	WPW10131078		Nut, Lock   (Replaces: 7103P139-60)	10			$ 4.00
18	W11233072		Screw   (Replaces: 74004208)	10		Immediately	$ 12.62
19	71003042		Drawer, Storage	10	Appelez-nous	-
20	WP488130		Nut   (Replaces: 7103P082-60)	10			$ 6.27
20	74003566		Roller, Drawer	10	Appelez-nous	-
