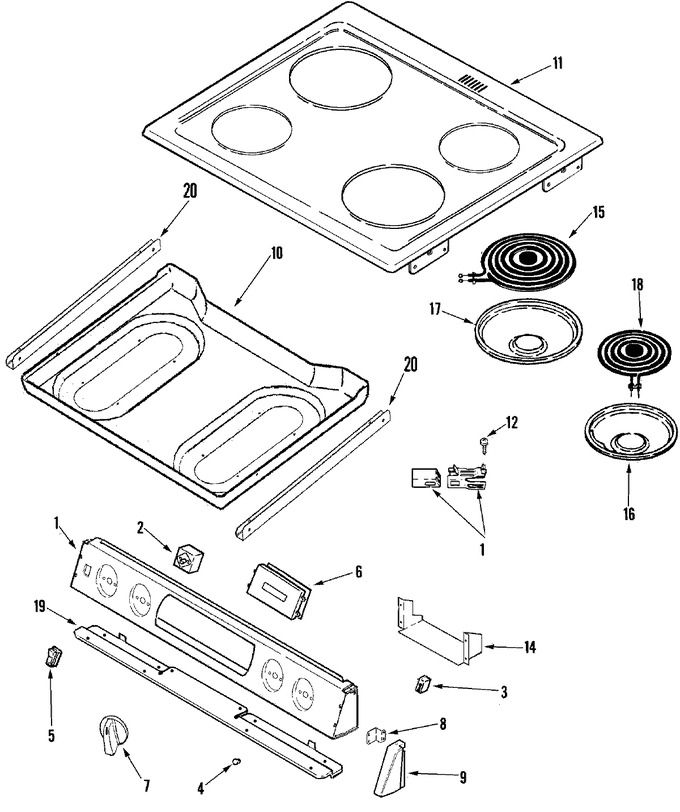

01 - Body
02 - Door/drawer
03 - Oven/base
04 - Supplemental Information
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008021 | Gasket, Manifold Panel | 10 |
|
- | ||||
| 1 | 74008017 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 3 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.02 | |||
| 4 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| 5 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 72.68 | ||||
| 6 | 74008024 | Overlay, Control (wht) | 10 |
|
- | ||||
| 6 | 74008022 | Clock/control, T1 | 10 |
|
- | ||||
| 7 | 74008019 | Knob, (wht) | 10 |
|
- | ||||
| 8 | 74005671 | Bracket, End Cap | 10 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74004821 | Cap, End (wht-rt) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74004822 | Cap, End (wht-lt) | 10 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | WPW10348409 | Screw, W/shoulder (Replaces: 74007476) | 10 |
|
Immediately | $ 6.98 | |||
| 10 | 74006046 | Bottom, Burner Box | 10 |
|
- | ||||
| 11 | 74007634 | Top, Main (wht) | 10 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 13 | 12001676 | Receptacle Assy. | 10 |
|
Immediately | $ 28.45 | |||
| 14 | 74004246 | Insulator, Fiber Board | 10 |
|
- | ||||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 10 |
|
Immediately | $ 165.96 | |||
| 16 | W10291024 | Bowl, Drip (6`` Gry-solid) (Replaces: 74003440) | 10 |
|
Immediately | $ 49.90 | |||
| 17 | W10291024 | Bowl, Drip (8`` Gry-solid) (Replaces: 74003441) | 10 |
|
Immediately | $ 49.90 | |||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 10 |
|
Immediately | $ 112.28 | |||
| 19 | 74004185 | Support, Control Panel | 10 |
|
- | ||||
| 19 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 20 | 74005822 | Bracket, Support | 10 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 |
