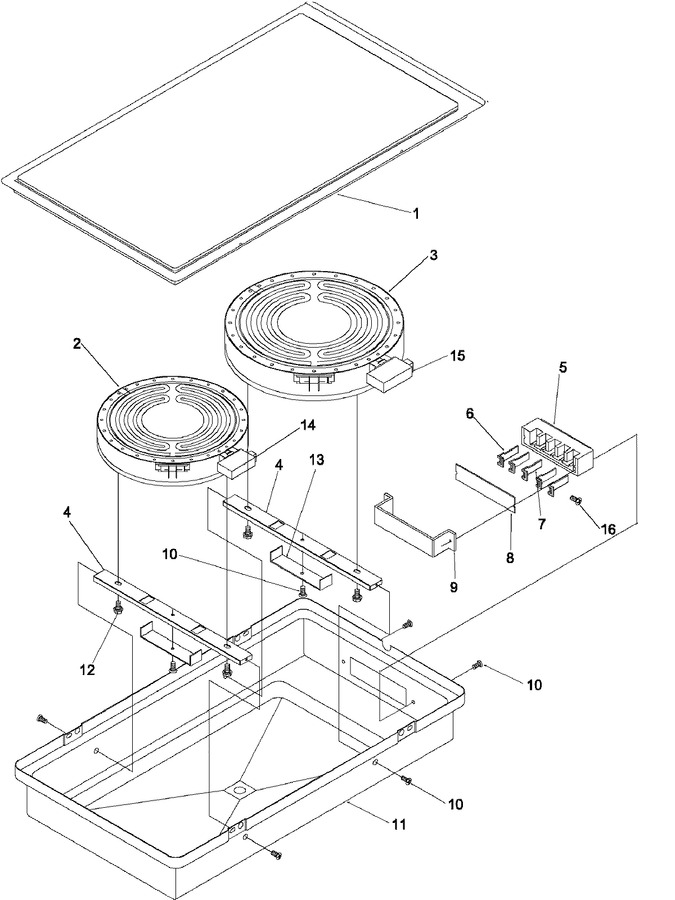

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	77001160		Assy, Glass & Frame (blk)		Appelez-nous	-
2	77001162		Element, Ribbon-1200w		Appelez-nous	-
3	W10823710		Element, Ribbon-2000w   (Replaces: 77001163)			Immediately	$ 330.41
4	Y0316133		Brkt, Element Mtg		Appelez-nous	-
5	Y0314569		Module, Plug Block		Appelez-nous	-
6	Y0052040		Contact, Spade-power		Appelez-nous	-
7	Y0052041		Contact, Spade-ground				$ 4.83
8	Y0041994		Insulator-cooktop Module		Appelez-nous	-
9	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
10	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
11	31907501		Module Pan, Electric		Appelez-nous	-
12	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: 31750401)			Immediately	$ 6.47
15	31750014		Washer, Lock 13/64 X 7/16 O.d.		Appelez-nous	-
16	WP8281227		Screw, No.8-18 X 7/16 P Hex Wsh   (Replaces: 31750429)				$ 9.40
NI	31833101		Cleaner, Cond-.5 Oz (sample)		Appelez-nous	-
