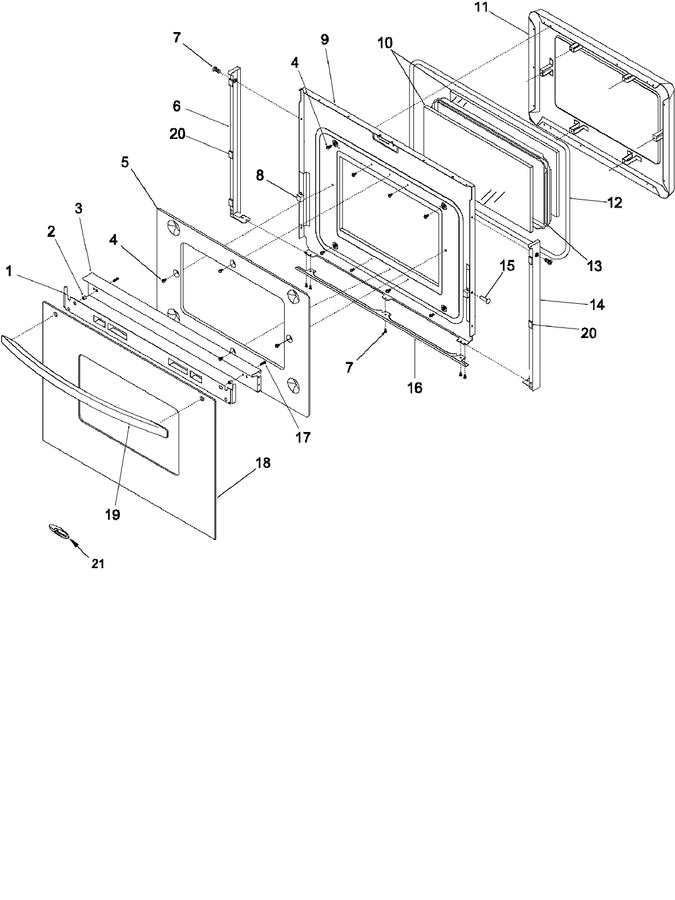

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 77001164 | Glass, Heat Shield |
|
- | |||||
| 2 | 309461B | Bushing, Handle (blk) |
|
- | |||||
| 3 | 77001165 | Trim, Top Door (blk) |
|
- | |||||
| 4 | 31750706 | Screw, No.8 X .375 Wafer Hd(blk) |
|
- | |||||
| 5 | Y0309068 | Shield, Heat |
|
- | |||||
| 6 | 309523B | End Cap, Door (lt-blk) |
|
- | |||||
| 7 | 31750706 | Screw, No.8 X .375 Wafer Hd(blk) |
|
- | |||||
| 8 | Y0309627 | Bumper, Rubber |
|
- | |||||
| 9 | 317023CG | Backer, Oven Door |
|
- | |||||
| 10 | Y0317019 | Glass, Door |
|
- | |||||
| 11 | 317021CG | Pad, Oven Door |
|
- | |||||
| 12 | 31715902 | Gasket, Oven Door (67``) |
|
$ 13.97 | |||||
| 13 | Y0317020 | Frame, Window Pack |
|
- | |||||
| 14 | 309522B | End Cap, Door (rt-blk) |
|
- | |||||
| 15 | Y0302648 | Rivet, Pop |
|
- | |||||
| 16 | 309460B | Support, Glass (blk) |
|
- | |||||
| 17 | 31750525 | Screw, 10-32 X 1.250`` Pan Hd |
|
- | |||||
| 18 | 316238B | Glass, Oven Door (blk) |
|
- | |||||
| 19 | 77001118 | Handle, Oven Door (blk) |
|
- | |||||
| 20 | 0043184 | Tape, Foam |
|
- | |||||
| 21 | 31975501 | Insulation, Door Pad-long |
|
- |
