SELECT A DIAGRAM
02 - Backguard
03 - Drawer Parts
04 - Burner Parts
05 - Cooktop Parts
06 - Door Parts
07 - Body Parts
08 - Burner Box Parts
SELECT A DIAGRAM
New Model Search:

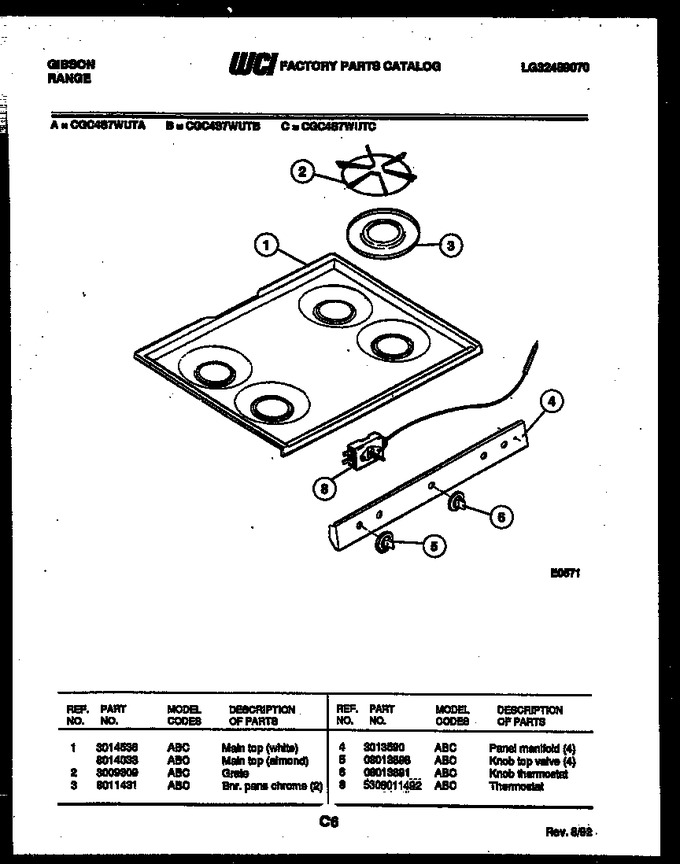

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8014033 | Main Top Almond |
|
- | |||||
| 1 | 3014536 | Main Top (white) |
|
- | |||||
| 2 | 3009309 | Grate |
|
- | |||||
| 3 | 8011431 | Bnr Pans Chrome (2) |
|
- | |||||
| 4 | 3013590 | Panel Manifold (4) |
|
- | |||||
| 5 | 08013898 | Knob Top Valve (4) |
|
- | |||||
| 6 | 08013891 | Knob Thermostat |
|
- | |||||
| 8 | 5308011492 | Thermostat |
|
- |
