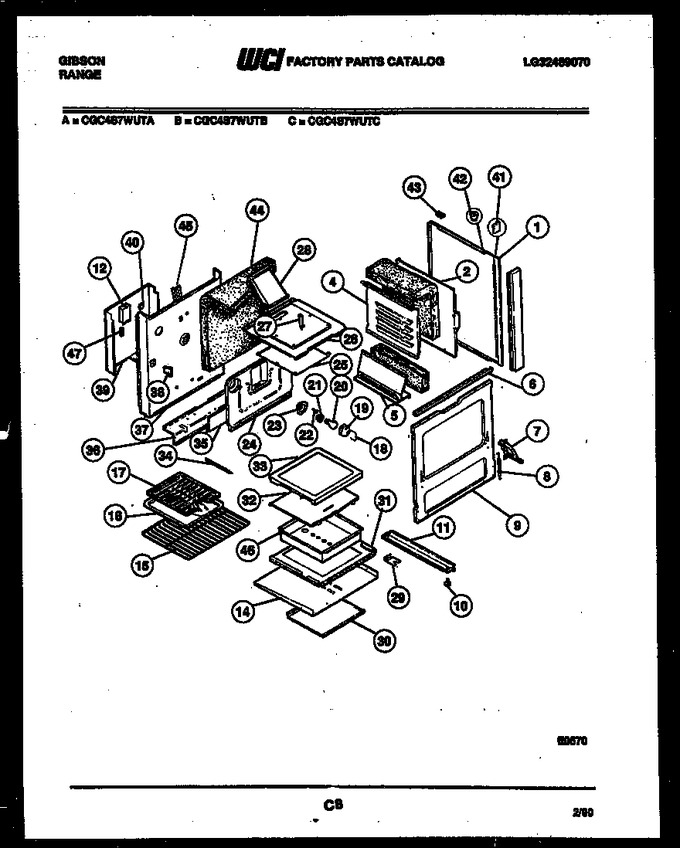

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A64013004		Bodyside Pnl. (almond) (2)		Appelez-nous	-
1	3051061		Bodyside Pnl-white (2)		Appelez-nous	-
2	3131794		Shield Side Heat (2)		Appelez-nous	-
5	3131053		Retainer Bnr. Insul.		Appelez-nous	-
6	3131811		Support Control Pnl		Appelez-nous	-
8	3017488		Spring Oven Door (2)		Appelez-nous	-
10	3051080		Leg Leveler (4)		Appelez-nous	-
11	08068047		Rail - Base (2)		Appelez-nous	-
12	3200669		Spark Module		Appelez-nous	-
14	3131820		Lining Oven Bottom		Appelez-nous	-
15	3015714		Rack - Oven (2)		Appelez-nous	-
18	3205904		Retainer Oven Light Lens		Appelez-nous	-
19	3131809		Lens-oven Light		Appelez-nous	-
21	3016399		Socket Housing		Appelez-nous	-
22	3009410		Receptacle Oven Tl.		Appelez-nous	-
25	08011509		Baffle Broiler Burner		Appelez-nous	-
26	3131802		Liner Oven Top		Appelez-nous	-
27	3131800		Bracket,burner Box		Appelez-nous	-
28	3016877		Vent Box Assy Bronze		Appelez-nous	-
29	3131041		Bracket-installation		Appelez-nous	-
30	08068050		Shield Storage Dwr		Appelez-nous	-
31	3016875		Liner Oven Tbtm		Appelez-nous	-
32	3131823		Baffle Bake Burner		Appelez-nous	-
34	3201170		Shield-capillary Bulb		Appelez-nous	-
35	08068039		Cover Control Valve		Appelez-nous	-
36	3131831		Support Control Valve		Appelez-nous	-
37	3131833		Back Main 30 S/c		Appelez-nous	-
38	3051096		Support,oven Rear		Appelez-nous	-
39	08068038		Cover Back Wire		Appelez-nous	-
40	3131839		Thermostat Bake Broil Select		Appelez-nous	-
41	3131791		Clip,bodyside				$ 19.01
42	3051063		Grommet Plastic		Appelez-nous	-
43	3016129		Grommet Main Top		Appelez-nous	-
44	3131795		Insul. Ov. Wrap		Appelez-nous	-
45	3131046		Channel Main Back Wire		Appelez-nous	-
46	08068046		Pan Oven Burner		Appelez-nous	-
16A	3016973		Pan Broiler Bronze		Appelez-nous	-
17A	3016974		Grid Broiler Pan Bronze		Appelez-nous	-
24A	3200915		Liner Oven Back Bronze		Appelez-nous	-
33A	3016975		Oven Bottom Pl. Bronze		Appelez-nous	-
44A	3131840		Insul. Ov. Top & Bottom		Appelez-nous	-
4A	3016533		Liner Right Side Bronze		Appelez-nous	-
4C	3016534		Liner Left Side Bronze		Appelez-nous	-
5A	3131054		Shield Bnr. Box Ls		Appelez-nous	-
7B	3205895		Hinge Oven Door (rs)		Appelez-nous	-
7C	3205894		Hinge Oven Door (ls)				$ 55.91
9A	3016874		Frame Front Bronze		Appelez-nous	-
