SELECT A DIAGRAM

02 - Backguard


03 - Cooktop


04 - Oven Door


05 - Burners


06 - Body


07 - Utility Drawer

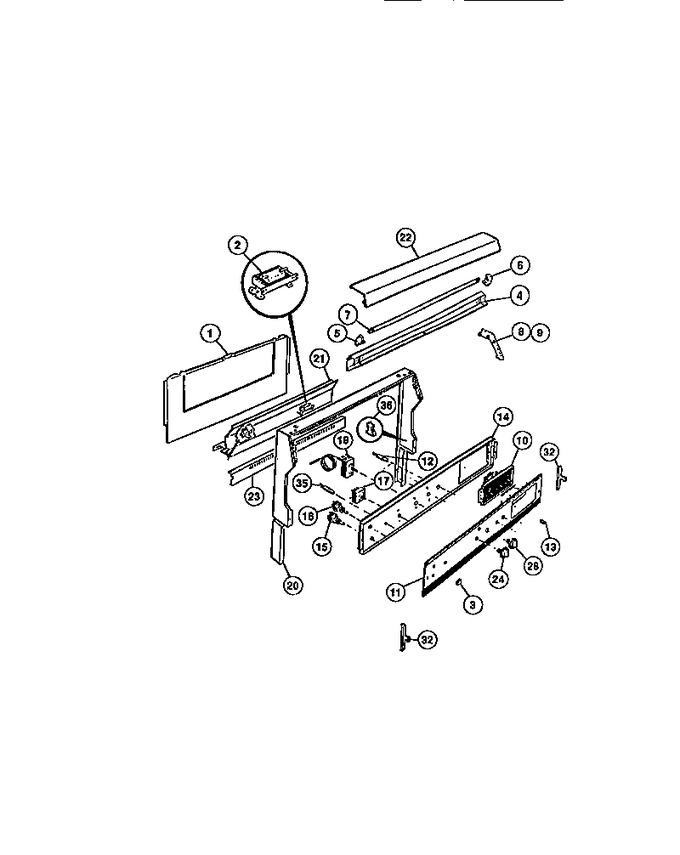

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield, Rear Wall		Appelez-nous	-
2	5303051115		Ballast		Appelez-nous	-
3	5303011507		Bezel, Switch (2)				$ 21.47
4	3131277		Support, Fluorescent		Appelez-nous	-
5	3051222		Receptacle Fluorescent Light-lh		Appelez-nous	-
6	3051223		Receptacle Fluorescent Light-rh		Appelez-nous	-
7	3131275		Bulb-fluorescent				$ 49.40
8	3131267		Cap End-trim Canopy-lh		Appelez-nous	-
9	3131268		Cap End-trim Canopy-rh		Appelez-nous	-
10	5303212676		Electrical Clock		Appelez-nous	-
11	5303212677		Control Panel		Appelez-nous	-
12	08037896		Indicator Light (2)		Appelez-nous	-
13	3131472		Knob-clock (3)		Appelez-nous	-
14	5303212536		Plate Instrument Mounting		Appelez-nous	-
15	5303200479		Switch Oven Light				$ 7.04
16	5303200480		Switch-fluorescent Light				$ 125.53
17	5303212678		Switch Selector		Appelez-nous	-
18	5303271746		Thermostat-bake				$ 414.28
20	3131280		Trim-wrapper		Appelez-nous	-
21	5303212535		Trim-lower Splasher (almond)		Appelez-nous	-
22	5303212668		Trim-canopy		Appelez-nous	-
23	3131241		Trim-vent		Appelez-nous	-
24	5303212679		Knob-thermostat		Appelez-nous	-
28	5303212680		Knob-selector Switch		Appelez-nous	-
32	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
35	3201728		Indicator Light-lock (1)		Appelez-nous	-
36	5303131237		Support-backguard,(2)		Appelez-nous	-
*80360	3018820		Shield-backguard		Appelez-nous	-
*80361	3131276		Spacer-fl Lt Mounting		Appelez-nous	-
35A	3204745		Bushing-control Shaft (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
