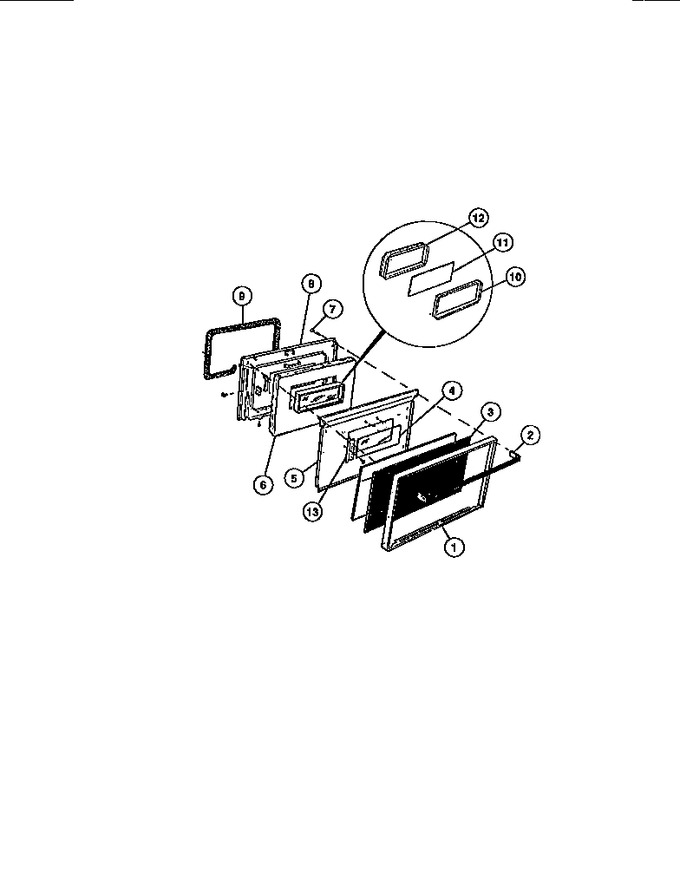

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 5303212669 | Handle-oven Door |
|
- | |||||
| 3 | 5303131132 | Glass-front (vis Black) |
|
- | |||||
| 4 | 5303209512 | Glass-heat Barrier |
|
$ 150.41 | |||||
| 5 | 5303211084 | Shield-wool |
|
- | |||||
| 6 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 7 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 8 | 5303209515 | Liner-oven Door |
|
- | |||||
| 9 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 10 | 5303209511 | Collar-glass |
|
- | |||||
| 11 | 5303209513 | Glass Oven Door |
|
- | |||||
| 12 | 5303209517 | Spacer-glass |
|
- | |||||
| 13 | 5303209510 | Bracket-glass |
|
- | |||||
| *80362 | 5303211085 | Seal-rope |
|
$ 44.00 | |||||
| 9A | 5303208655 | Foil-aluminum (non-illustrated) |
|
- | |||||
| 9B | 5303208656 | Foil-aluminum (non-illustrated) |
|
- |
