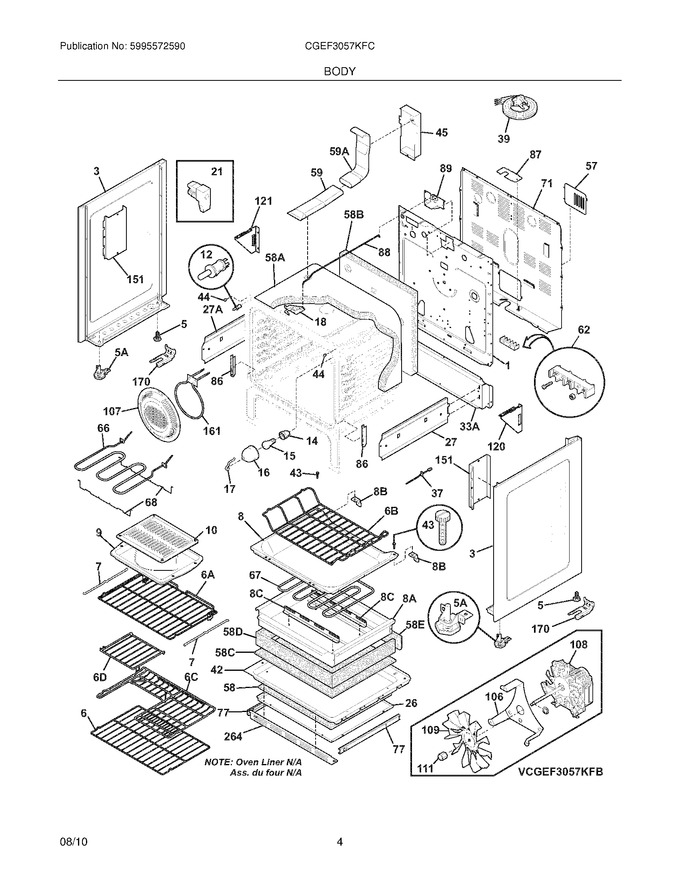

SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316401802 | Panel,main Back |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316496201 | Rack,oven (Replaces: 316496207) |
|
Immediately | $ 103.48 | ||||
| 7 | 316546300 | Link,coupler ,(2) ,auto Rack |
|
Immediately | $ 22.75 | ||||
| 8 | 316549601 | Bottom,oven |
|
$ 141.29 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 12 | 316445500 | Switch,oven Light ,door Frame |
|
Immediately | $ 54.74 | ||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 26 | 316563200 | Shield,lower ,hidden Bake |
|
$ 73.71 | |||||
| 27 | 316572300 | Shield,warmer Side ,rh |
|
$ 27.51 | |||||
| 42 | 316564301 | Shield,wool ,lower ,hidden Bake |
|
$ 112.19 | |||||
| 43 | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| 44 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 45 | 316234100 | Shield,wire ,vent Tube |
|
$ 70.16 | |||||
| 57 | 316457801 | Cover,access |
|
$ 12.89 | |||||
| 58 | 316565500 | Insulation,lower ,hidden Bake |
|
$ 69.46 | |||||
| 59 | 316208401 | Vent Tube,assembly ,w/catalyst |
|
$ 194.14 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 68 | 316429100 | Support,element ,broil |
|
$ 62.51 | |||||
| 71 | 316422304 | Shield,rear Wall |
|
$ 115.53 | |||||
| 77 | 316456700 | Glide,warmer Drawer ,outer/rh & Lh ,(2) |
|
Immediately | $ 60.96 | ||||
| 86 | 316441300 | Receptacle,hinge ,(2) (Replaces: 316537400) |
|
$ 21.97 | |||||
| 87 | 316081202 | Bracket,cable Mtg |
|
$ 4.96 | |||||
| 88 | 316203500 | Rod,auto Latch |
|
$ 72.30 | |||||
| 106 | 316404100 | Bracket,motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026701 | Cover,fan |
|
$ 408.89 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 120 | 316279204 | Bracket,stiffener ,rh |
|
- | |||||
| 121 | 316279205 | Bracket,stiffener ,lh |
|
- | |||||
| 151 | 316404600 | Shield,bodyside |
|
$ 49.30 | |||||
| 170 | 316112005 | Anti Tip Kit,assembly (Replaces: 316112004) |
|
Immediately | $ 18.91 | ||||
| 264 | 316570901 | Shield,front Frame ,black |
|
$ 25.52 | |||||
| 27A | 316572301 | Shield,warmer Side ,lh |
|
$ 28.25 | |||||
| 33A | 316402100 | Shield,rear Wall ,lower |
|
$ 47.30 | |||||
| 58A | 316406604 | Insulation,oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316406503 | Insulation,oven Back |
|
$ 112.69 | |||||
| 58C | 316565400 | Insulation,sump ,hidden Bake |
|
$ 50.19 | |||||
| 58D | 316565200 | Insulation,front & Sides ,hidden Bake |
|
$ 35.44 | |||||
| 58E | 316565300 | Insulation,rear ,hidden Bake |
|
$ 19.85 | |||||
| 59A | 316208304 | Tube,oven Vent ,upper |
|
$ 80.09 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316577800 | Rack,oven ,auto (Replaces: 316556500) |
|
$ 243.43 | |||||
| 6B | 316575600 | Rack,oven ,deep Sump |
|
$ 143.96 | |||||
| 6C | 316425600 | Rack,half ,oven |
|
$ 254.73 | |||||
| 6D | 316419400 | Rack,half Insert ,oven |
|
$ 209.58 | |||||
| 8A | 316563501 | Base,element ,hidden Bake |
|
$ 167.45 | |||||
| 8B | 316563400 | Bracket,support ,oven Bottom ,(2) |
|
$ 10.63 | |||||
| 8C | 316505801 | Support,element |
|
$ 25.48 | |||||
| F108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| F161 | 316211603 | Element,convection Fan ,350 W |
|
$ 255.86 | |||||
| F170 | 316541700 | Template,anti-tip |
|
- | |||||
| F170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| F170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp |
|
Immediately | $ 58.30 | ||||
| F39 | 318113111 | Cord,electric |
|
$ 95.55 | |||||
| F66 | 316430900 | Element,broil ,4000w |
|
Immediately | $ 256.20 | ||||
| F67 | 316563600 | Element,hidden Bake |
|
$ 242.67 | |||||
| F89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| FNI | 316506261 | Wiring Harness,main |
|
$ 187.74 | |||||
| FNI | 316525631 | Harness,wiring ,bake Element ,connector |
|
$ 36.86 | |||||
| NI | 316418901 | Screw,trilobe ,10-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 | |||||
| NI | 316565600 | Bracket,bake Element |
|
$ 10.61 | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316021132 | Screw,8-18 X 11/16 ,black ,(3) |
|
$ 12.89 | |||||
| NI | 316279600 | Screw,bracket ,stiffener ,(4) |
|
$ 12.05 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 3131737 | Washer-black |
|
$ 5.59 |
