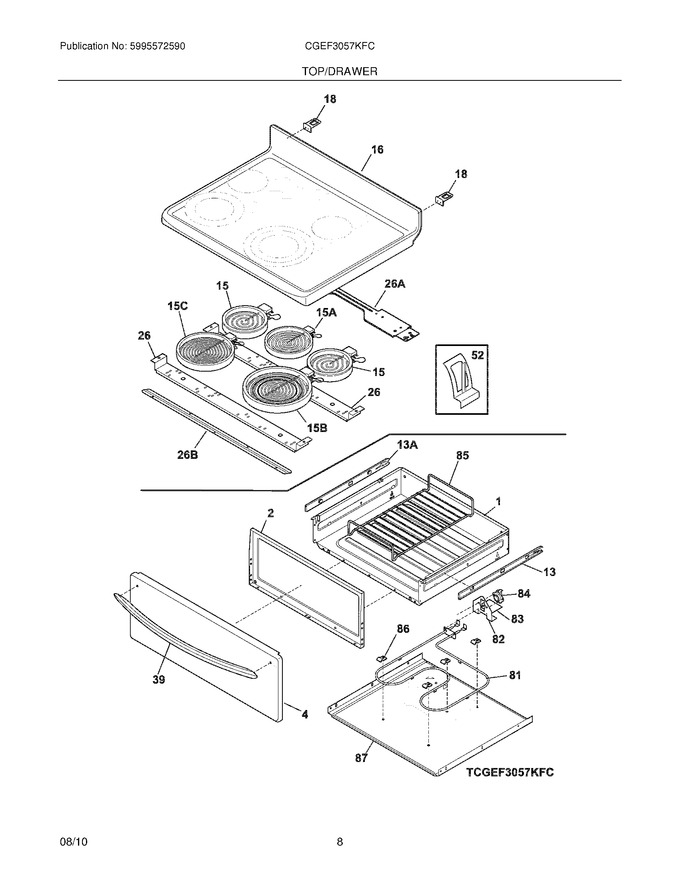

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer,warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 316403303 | Liner,drawer |
|
$ 67.79 | |||||
| 4 | 5304523142 | Panel,drawer Front ,stainless (Replaces: 316409407) |
|
$ 279.25 | |||||
| 13 | 316415000 | Glide,warmer ,inner Rh (Replaces: 316415002) |
|
$ 58.82 | |||||
| 16 | 316531954 | Maintop,steel/glass ,black |
|
$ 295.49 | |||||
| 18 | 316580800 | Bracket-hinge,main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 316427600 | Channel,element Support ,(2) |
|
- | |||||
| 39 | 316554010 | Handle,door/drawer ,stainless (Replaces: 316554005) |
|
Immediately | $ 168.44 | ||||
| 52 | 316461700 | Clip,element Mtg |
|
$ 12.05 | |||||
| 82 | 316093200 | Bracket,element Mtg |
|
- | |||||
| 83 | 316093300 | Shield,terminal ,warmer Drawer |
|
- | |||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 316425900) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip,hold Down ,warmer Element |
|
$ 9.93 | |||||
| 87 | 316091900 | Base,warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide,warmer ,inner Lh |
|
Immediately | $ 58.82 | ||||
| 26A | 316498200 | Bracket-support,chassis ,aluminum |
|
$ 52.33 | |||||
| 26B | 316214202 | Bracket,chassis Support ,front |
|
$ 25.41 | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200 ,(2) ,radiant |
|
Immediately | $ 122.86 | ||||
| F15A | 140273621015 | Element,surface ,warmer ,100 W (Replaces: 318198832) |
|
Immediately | $ 35.77 | ||||
| F15B | 316216703 | Element,surface ,triple ,6/9/12`` |
|
$ 284.07 | |||||
| F15C | 5304533520 | Element-dual,9/6`` ,surface ,3000w ,radiant (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| F81 | 316437300 | Element,warmer Drawer |
|
$ 106.17 | |||||
| F84 | 316093502 | Thermo Disc,warmer Drawer |
|
$ 51.03 | |||||
| FNI | 316510646 | Harness,wiring ,surface |
|
$ 240.61 | |||||
| FNI | 5304516184 | Harness,warm Base (Replaces: 316525623) |
|
$ 28.51 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 5308014215 | Screw`6-20 X 0.312 |
|
$ 2.28 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316468100 | Cleaner,smoothtop ,w/sponge |
|
$ 4.88 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316433303 | Screw,handle Mtg. ,10-24 X 1.75`` ,(2) (Replaces: 316439500) |
|
Immediately | $ 31.17 |
