01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts


11 - Optional Parts (not Included)

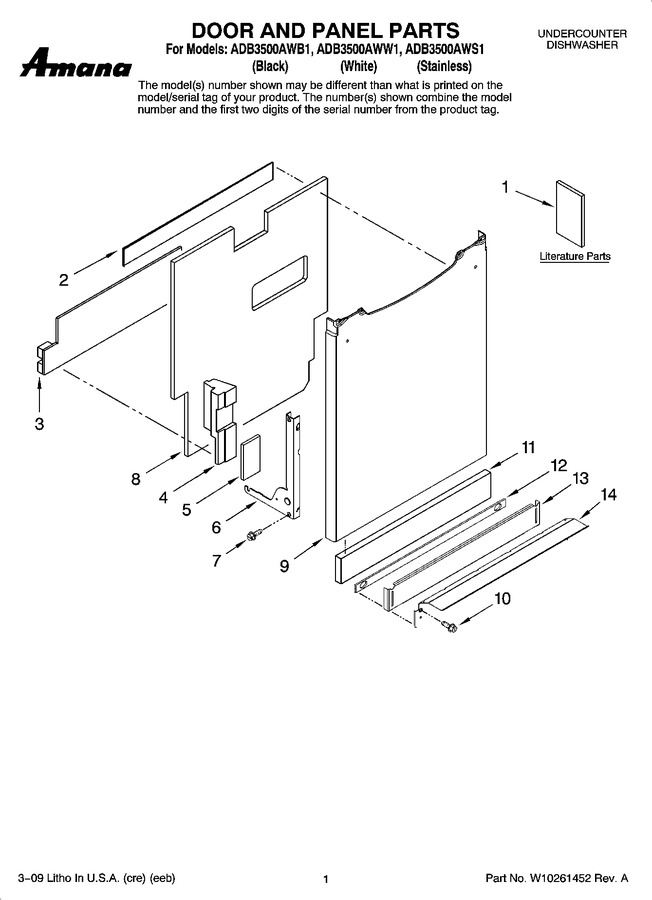

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158012		Instructions, Installation		Appelez-nous	-
1	W10260099		Energy Guide		Appelez-nous	-
1	W10157793		Guide, Use & Care		Appelez-nous	-
2	99002693		Insulation, Door		Appelez-nous	-
3	99003048		Barrier, Foam		Appelez-nous	-
4	99003046		Block, Foam (left)		Appelez-nous	-
4	99003047		Block, Foam (right)		Appelez-nous	-
5	99003049		Wrap, Foam				$ 18.96
6	WPW10118637		Bracket, Hinge (right)   (Replaces: W10118637)				$ 233.73
6	W10118638		Bracket, Hinge (left)				$ 109.77
7	99001075		Screw				$ 5.81
8	99003044		Pad, Foam				$ 26.70
9	99002771		Panel, Front (stainless)		Appelez-nous	-
9	99002770		Panel, Front (white)		Appelez-nous	-
9	99002768		Panel, Front (black)		Appelez-nous	-
10	WP6-912366		Screw (black)   (Replaces: 912366)				$ 7.29
10	99001194		Screw (white)				$ 6.18
11	WP6-920587		Insulation, Toe Panel   (Replaces: 99002414)				$ 6.35
12	99002698		Damper, Toe Panel (white)				$ 18.96
12	99002694		Damper, Toe Panel (black)				$ 20.14
13	99002765		Panel, Toe (black)		Appelez-nous	-
13	99002766		Panel, Toe (white)		Appelez-nous	-
14	99002860		Support, Front (white)		Appelez-nous	-
14	99002859		Support, Front (black)		Appelez-nous	-
