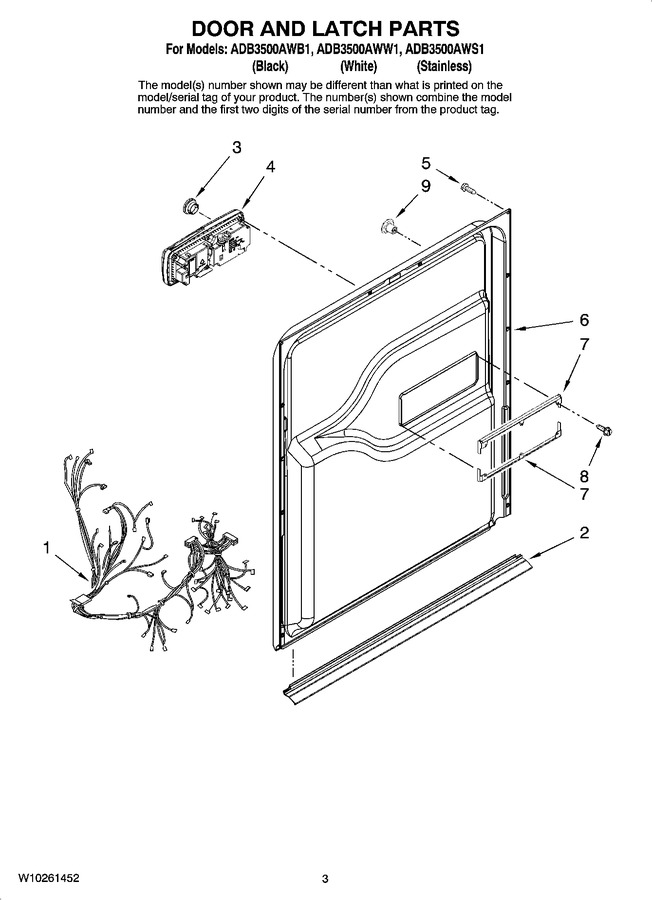

03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99003308		Harness, Wiring		Appelez-nous	-
2	99003045		Seal, Door				$ 38.59
3	99002992		Cap, Rinse Aid				$ 19.99
4	99003321		Dispenser, Rinse Aid		Appelez-nous	-
5	Y912620		Screw, Door				$ 5.48
6	W10203663		Inner Door W/damper		Appelez-nous	-
7	99002465		Bracket, Dispenser		Appelez-nous	-
8	WP33002917		Screw   (Replaces: 912615)			Immediately	$ 6.90
9	99003591		Hanger, Basket		Appelez-nous	-
