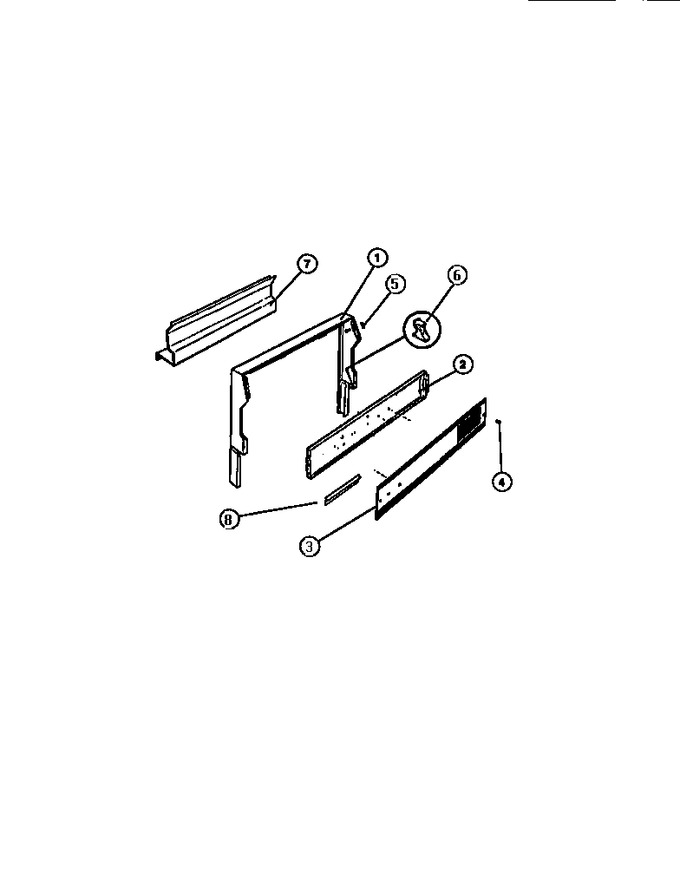

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204495 | Trim-wrapper |
|
- | |||||
| 2 | 3203536 | Plate-instr Mtg |
|
- | |||||
| 3 | 3204730 | Panel-control |
|
- | |||||
| 4 | 3203078 | Nut-decorative |
|
- | |||||
| 5 | 3131607 | Fastener-glass |
|
- | |||||
| 6 | 3131237 | Support Backguard |
|
- | |||||
| 7 | 3204729 | Trim-lower Splasher-almond |
|
- | |||||
| 7 | 3204728 | Trim-lower Splasher-white |
|
- | |||||
| 8 | 3131468 | Bracket, Backguard |
|
- |
