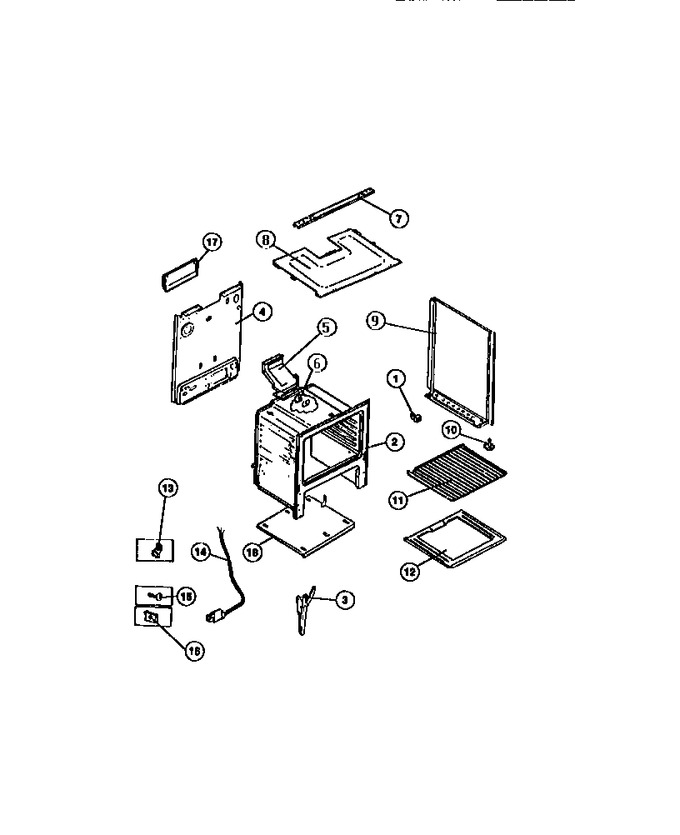

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer,bodyside				$ 3.62
3	3131569		Channel-dr Hinge (2)		Appelez-nous	-
4	3203082		Back-main		Appelez-nous	-
5	3131909		Flue		Appelez-nous	-
6	3131355		Gasket, Flue		Appelez-nous	-
7	3203441		Channel-burner Supt		Appelez-nous	-
8	3204962		Burner Box		Appelez-nous	-
9	3200790		Pnl-b/s Rh (almd)		Appelez-nous	-
10	3203397		Screw - Leveling (7)		Appelez-nous	-
11	3131973		Rack-oven		Appelez-nous	-
12	3011519		Bottom-oven		Appelez-nous	-
13	3011805		Clip - Thermo Bulb		Appelez-nous	-
14	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
15	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
16	3012323		Fstnr (8 U Type)		Appelez-nous	-
17	3131191		Cover, Flue		Appelez-nous	-
18	3131180		Base, Broil		Appelez-nous	-
*31703	3934056		Anti-tip Bracket		Appelez-nous	-
*31703	3012327		Fstnr - Power Cord		Appelez-nous	-
*31703	3018607		Cover Plate				$ 10.50
*31703	3131244		Cover, Power Cord		Appelez-nous	-
*31703	3015372		Cover - Front Main		Appelez-nous	-
*31703	3051218		Plate,oven Light		Appelez-nous	-
*31703	3014226		Support-oven Bottom		Appelez-nous	-
*31704	3131660		Shield, Rear Wall		Appelez-nous	-
*31704	3202799		Shield, Flue		Appelez-nous	-
12A	3017142		Insulation (wrapper) (non-illustrated)				$ 193.50
12B	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
9A	3200793		Pnl-b/s Lh (almd)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
