View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Backguard
02 - Main Top
03 - Burner
04 - Griddle
05 - Body
06 - Oven Door
07 - Oven Door
SELECT A DIAGRAM
New Model Search:

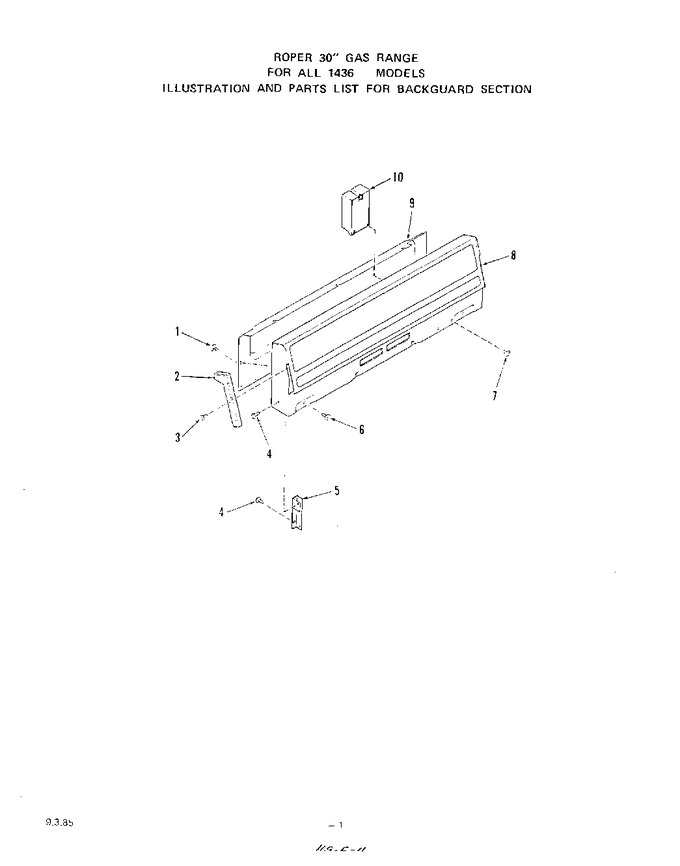

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 70588 | Clip |
|
- | |||||
| 2 | 326282 | End Cap (right) |
|
- | |||||
| 2 | 326283 | End Cap (left) |
|
- | |||||
| 3 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 4 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 5 | 327106 | Support-background (right) |
|
- | |||||
| 5 | 327107 | Support-background (left) |
|
- | |||||
| 6 | 326974 | Screw 10abx1/2`` |
|
- | |||||
| 7 | 329676 | Screw 13-16 X 1/2`` |
|
- | |||||
| 8 | 327519 | Crosstie |
|
- | |||||
| 9 | 320767 | Wire Cover-background |
|
- | |||||
| 10 | 326136 | Module - Spark Igniter |
|
- |
