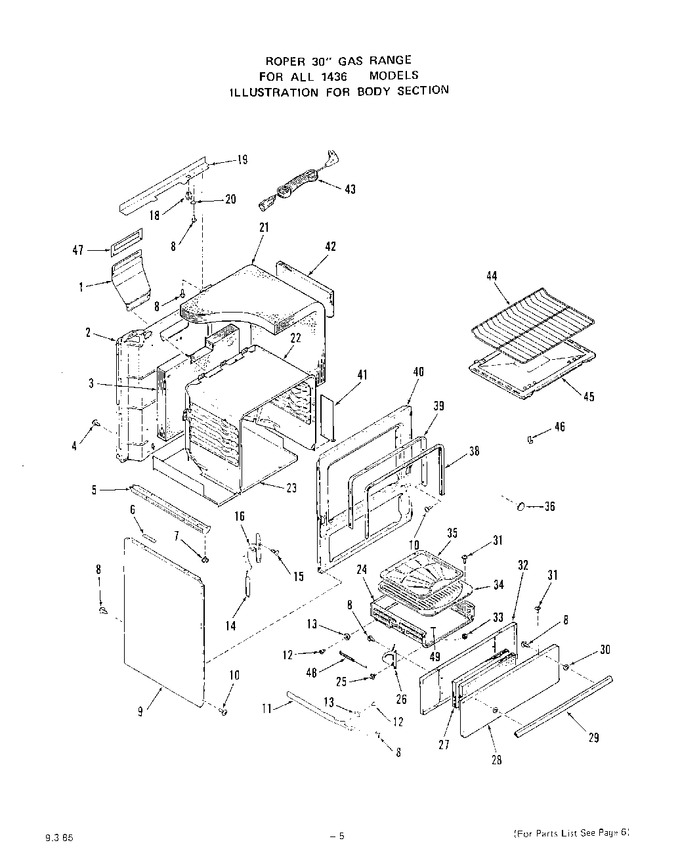

SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner


04 - Griddle


05 - Body


06 - Oven Door


07 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327079		Flue Deflector		Appelez-nous	-
2	327087		Back-main		Appelez-nous	-
3	328142		Insulation-oven Back		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	326050		Base W/levelers (lt. Or Rt.)		Appelez-nous	-
6	326914		Spacer-main Top		Appelez-nous	-
7	326052		Leveler-leg (4 Req)		Appelez-nous	-
8	327320		Screw 10-16x7/16``		Appelez-nous	-
9	326059		Side-body (lt. Or Rt.) (almond)		Appelez-nous	-
9	326055		Side-body (lt. Or Rt.) (white)		Appelez-nous	-
10	326974		Screw 10abx1/2``		Appelez-nous	-
11	WP691371		Guide-broiler Drawer (inc`s. 12,13) (left)   (Replaces: 296326)			Immediately	$ 64.81
11	296327		Guide-broiler Drawer (inc`s. 12,13) (right)		Appelez-nous	-
12	70275		Rivet-shoulder		Appelez-nous	-
13	69006		Roller		Appelez-nous	-
14	326961		Spring-oven Door		Appelez-nous	-
15	112013		Screw 10-32 X 5/8``		Appelez-nous	-
16	329654		Hinge-oven Door (left)		Appelez-nous	-
16	329653		Hinge-oven Door (right)		Appelez-nous	-
18	232150		Disconnect		Appelez-nous	-
19	327251		Cover-backguard Bottom Wire		Appelez-nous	-
20	106767		Clip		Appelez-nous	-
21	326040		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
22	331586		Oven Body (14361a Models)		Appelez-nous	-
22	324958		Oven Body (14360a Models)		Appelez-nous	-
23	327053		Bottom-main		Appelez-nous	-
24	330100		Drawer-broiler (inc`s. 12,13) (14360a Models)		Appelez-nous	-
24	331566		Drawer-broiler (inc`s. 12,13) (14361a Models)		Appelez-nous	-
25	329271		Bolt-shoulder		Appelez-nous	-
26	327482		Hinge-broiler Door (right)		Appelez-nous	-
26	327483		Hinge-broiler Door (left)		Appelez-nous	-
27	W10820036		Insulation (2 Req)   (Replaces: 296141)			Immediately	$ 27.45
28	326291		Panel-broiler Door Front (almond)		Appelez-nous	-
28	326287		Panel-broiler Door Front (white)		Appelez-nous	-
29	292240		Handle		Appelez-nous	-
30	302343		Spacer		Appelez-nous	-
31	316849		Screw-10-32x1/2``		Appelez-nous	-
32	327060		Lining-broiler Door (14360a Models)		Appelez-nous	-
32	331567		Lining-broiler Door (14361a Models)		Appelez-nous	-
33	74056		Nut-keps 10-24		Appelez-nous	-
34	290171		Pan-broiler (14360a Models)		Appelez-nous	-
34	331593		Pan-broiler (14361a Models)		Appelez-nous	-
35	331588		Grid-broiler Pan (14361a Models)		Appelez-nous	-
35	313071		Grid-broiler Pan (14360a Models)		Appelez-nous	-
36	101063		Plug Button		Appelez-nous	-
38	326047		Seal-oven Door		Appelez-nous	-
39	327875		Retainer-oven Door Seal		Appelez-nous	-
40	332687		Front Frame (14361a Models)		Appelez-nous	-
40	326042		Front Frame (14360a Models)		Appelez-nous	-
41	328984		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
42	W10820036		Insulation (lt. Or Rt.)   (Replaces: 296141)			Immediately	$ 27.45
43	235822		Cord-range Service		Appelez-nous	-
44	326068		Rack-oven (2 Req)		Appelez-nous	-
45	327083		Bottom-oven (14360a Models)		Appelez-nous	-
45	331539		Bottom-oven (14361a Models)		Appelez-nous	-
46	115533		Clip-thermostat Bulb (2 Req)		Appelez-nous	-
47	329314		Insulation-flue		Appelez-nous	-
48	327481		Spring-broiler Drawer (lt. Or Rt)		Appelez-nous	-
49	331554		Bottom-broiler Drawer (14361a Models)		Appelez-nous	-
49	329862		Bottom-broiler Drawer (14360a Models)		Appelez-nous	-
