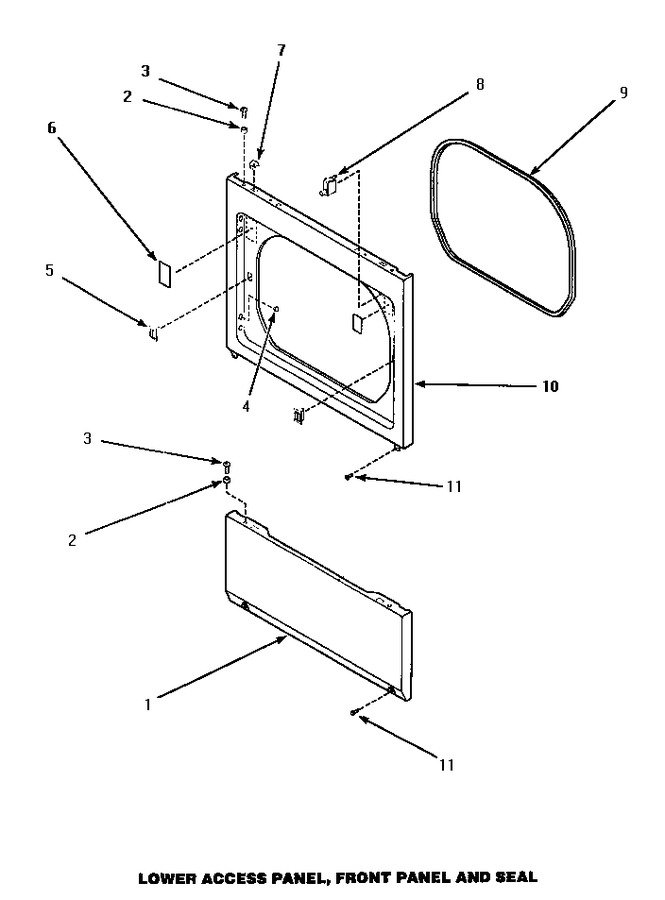

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	500044L		Panel, Access (almond)		Appelez-nous	-
1	500044W		Panel, Access (comml)		Appelez-nous	-
2	56079		Locater, Panel			Immediately	$ 6.95
3	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
4	500227		Screw, No.8ab-16x7/16ph				$ 14.82
5	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
6	500281		Sticker		Appelez-nous	-
7	WP22001650		Hold-down Clip   (Replaces: 28835)			Immediately	$ 7.34
8	W10169313		Door Switch   (Replaces: Y62872)			Immediately	$ 29.18
9	500034		Seal,front Panel		Appelez-nous	-
10	500033W		Panel, Front		Appelez-nous	-
10	500033L		Panel, Front (almond)		Appelez-nous	-
11	WP27001200		Screw   (Replaces: 33562)				$ 6.91
