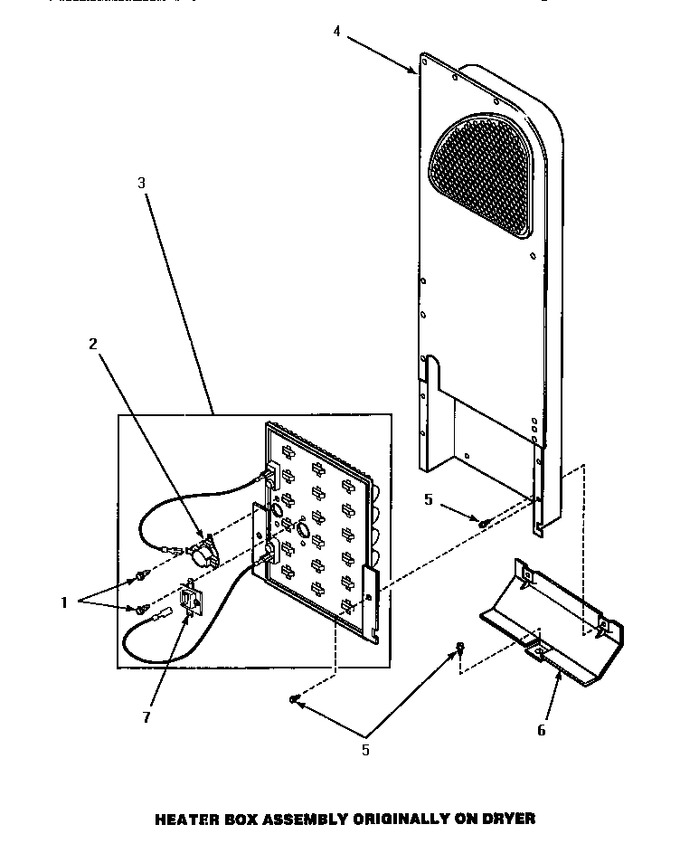

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
2	WPW10116735		Thermostat, Limit   (Replaces: Y62641)				$ 84.21
3	61928		Heater Assembly 208v				$ 142.52
3	61927		Heater Assembly			Immediately	$ 127.58
4	Y00000000		See Note Heater Box Assembly -- (see Heater Box Replacement Page)		Appelez-nous	-
5	WP3390631		Screw, 10b-16 X .34   (Replaces: 501668)				$ 7.04
6	60952		Shield,heat Duct		Appelez-nous	-
7	WP40113801		Fuse, Thermal   (Replaces: 62600)			Immediately	$ 10.37
