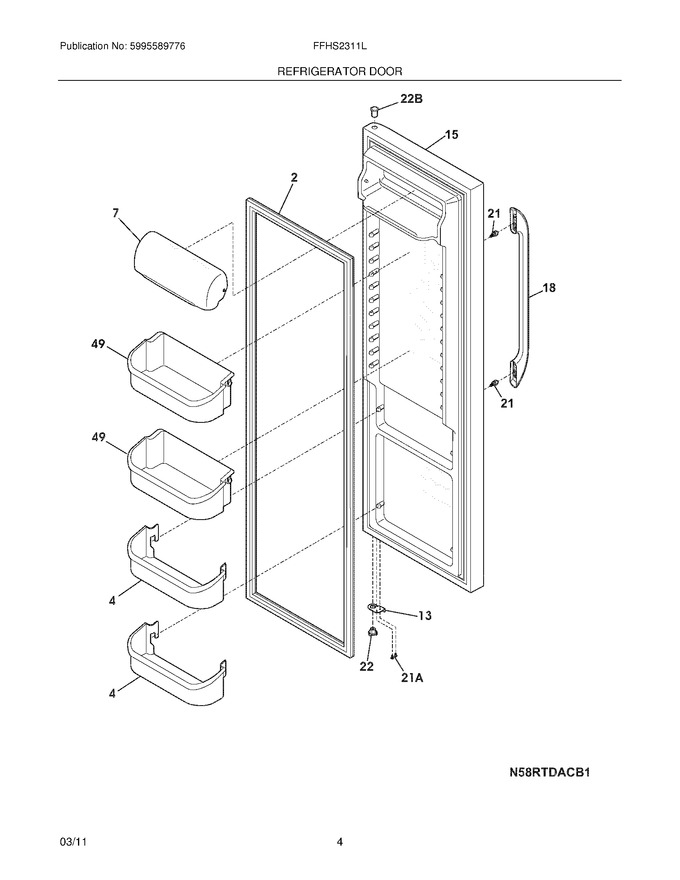

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241786007)			Immediately	$ 94.66
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581905		Door Stop,black ,ref				$ 60.25
15	242038873		Door-refr,black ,complete Assy		Appelez-nous	-
18	242059102		Handle-door,black				$ 88.69
21	241695904		Screw				$ 14.41
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
49	240324501		Bin-door,gallon			Immediately	$ 69.06
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
