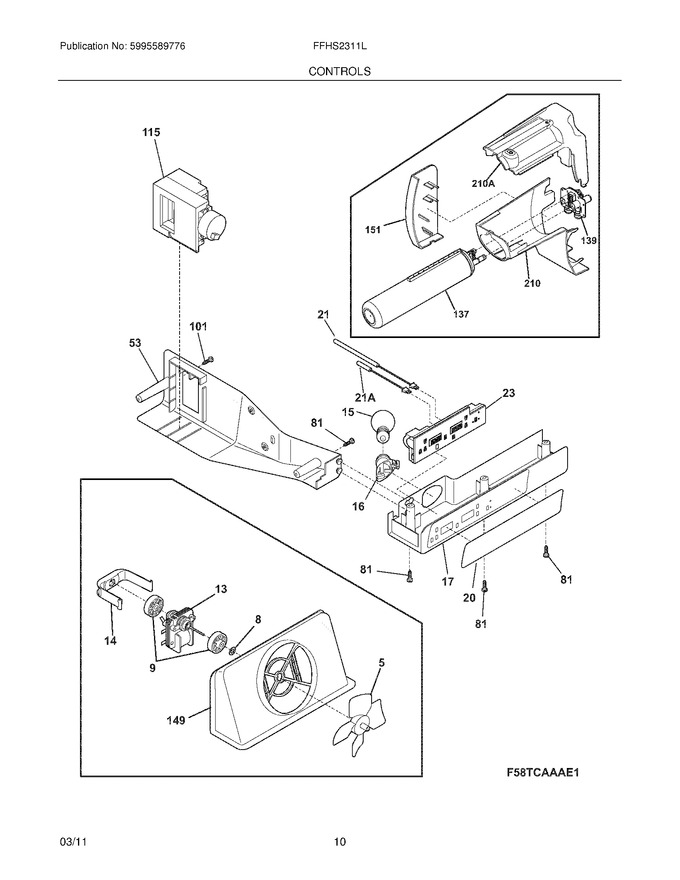

11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


22 - Wiring Schematic


23 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg			Immediately	$ 17.72
13	808602602		Motor-evap Fan   (Replaces: 241854601)				$ 203.63
14	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
17	241633512		Box-control,front   (Replaces: 241633506)				$ 101.35
20	241604010		Label-control Box   (Replaces: 241604005)				$ 4.55
53	241608902		Box-control   (Replaces: 241608901)				$ 103.14
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
101	241637202		Screw,no.8ab X 1 3/4``				$ 5.31
115	241600906		Damper Assy,w/seal   (Replaces: 241600905)			Immediately	$ 200.84
137	WF3CB		Filter-water,carbon   (Replaces: 242069601)			Immediately	$ 88.23
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 33.14
149	241563401		Shroud-fan Orfice		Appelez-nous	-
151	242069701		Cover-water Filter				$ 62.24
210	241983814		Housing-water Filtr   (Replaces: 241983803)				$ 74.42
F149	241528305		Seal,shroud		Appelez-nous	-
F16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
F21	241608401		Thermistor-refr				$ 77.97
F210	241998303		Mount-water Filter   (Replaces: 241998302)				$ 14.41
F21A	241608501		Thermistor-frzr				$ 50.32
F23	241739704		Control,electronic ,w/housing		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
FNI	241737801		Harness-wiring,control Box				$ 112.23
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
