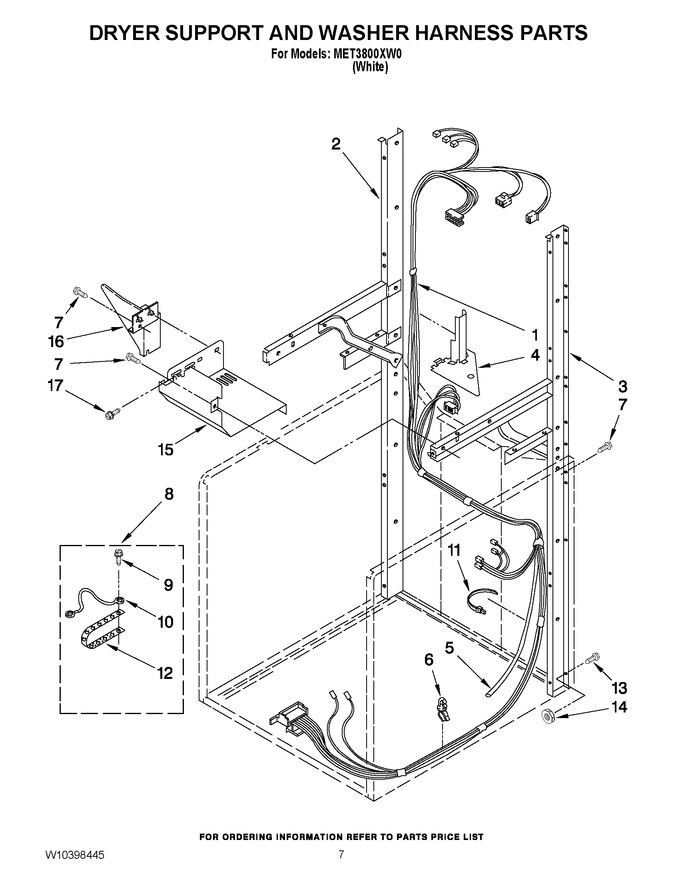

05 - Dryer Support And Washer Harness Parts


06 - Washer Top And Lid Parts


07 - Washer Cabinet Parts


08 - Brake, Clutch, Gearcase, Motor And Pump Parts


09 - Machine Base Parts


10 - Agitator, Basket And Tub Parts


11 - Gearcase Parts


12 - Brake And Drive Tube Parts


13 - Water System Parts


14 - Miscellaneous Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10415446		Harness, Washer				$ 234.25
2	3388851		Channel Assembly (left Hand Side)				$ 288.73
3	3388850		Channel Assembly (right Hand Side)				$ 289.31
4	3390609		Shield, Harness		Appelez-nous	-
5	W10400873		Hose, Pressure Switch		Appelez-nous	-
6	2219077		Clip, Harness				$ 55.06
7	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
8	685463		Kit, Grounding		Appelez-nous	-
9	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
10	685449		Wire		Appelez-nous	-
11	W10210799		Clip, Harness		Appelez-nous	-
12	22965		Strap, Grounding		Appelez-nous	-
13	3400300		Bolt, 5/16-18 X 1/2 (4)		Appelez-nous	-
14	WP8533952		Nut, Hex (4)   (Replaces: 8533952)				$ 74.57
15	W11108181		Shield, Front   (Replaces: 3394350)				$ 64.83
16	3390336		Shield, Thermostat		Appelez-nous	-
17	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
