| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP681414 |
 |
Screw, Bracket Mounting (10-16 X 1/2) (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 2 |
WP64067 |
 |
Bracket, Spring Outer (2) (Replaces: 64067) |
|
|
Immediately |
$ 7.88 |
|
|
| 3 |
WP63907 |
 |
Spring, Suspension(3) (Replaces: 63907) |
|
|
Immediately |
$ 7.97 |
|
|
| 4 |
8575214 |
|
Support & Brake, Tub |
|
Appelez-nous
|
- |
|
|
|
| 5 |
100092723 |
 |
Bracket, Spring Outer (l.f.) (Replaces: 64065) |
|
|
|
$ 416.82 |
|
|
| 6 |
3349340 |
|
Washer (2) |
|
|
|
$ 8.12 |
|
|
| 7 |
W10846509 |
 |
Screw, 10-32 X 5/8 (Replaces: 3400076) |
|
|
Immediately |
$ 6.98 |
|
|
| 8 |
WP8577376 |
 |
Seal, Centerpost (Replaces: 8577376) |
|
|
Immediately |
$ 6.47 |
|
|
| 9 |
3350506 |
|
Retainer, Hose |
|
|
|
$ 12.02 |
|
|
| 10 |
WP63134 |
 |
Ring, Sound Deadening (Replaces: 63134) |
|
|
|
$ 7.35 |
|
|
| 11 |
WPW10145155 |
 |
Retainer, Suspension Spring (Replaces: W10145155) |
|
|
Immediately |
$ 4.51 |
|
|
| 12 |
WP3400501 |
|
Screw, 5/16-18 X 1 3/32 (Replaces: 3400501) |
|
|
|
$ 5.70 |
|
|
| 13 |
WP8546455 |
 |
Bearing, Centerpost (2) (Replaces: 8546455) |
|
|
Immediately |
$ 25.16 |
|
|
| 14 |
W11095997 |
 |
Seal, Centerpost (3) (Replaces: 357409) |
|
|
Immediately |
$ 20.07 |
|
|
| 15 |
WPW10250667 |
 |
Spring, Counterweight (Replaces: W10250667) |
|
|
Immediately |
$ 8.63 |
|
|
| 16 |
285219 |
 |
Pad, Plate (Replaces: 62568) |
|
|
Immediately |
$ 20.19 |
|
|
| 17 |
WP3946509 |
 |
Plate, Suspension (includes Illus. 16) (Replaces: 3946509) |
|
|
|
$ 181.19 |
|
|
| 18 |
285744 |
 |
Pad, Base (Replaces: 3363660) |
|
|
Immediately |
$ 16.47 |
|
|
| 19 |
3349343 |
|
Base Assembly (includes Illus. 11 & 18) |
|
|
|
$ 223.97 |
|
|
| 20 |
285203 |
 |
Centerpost Bearing Kit (includes Illus. 8, 13 & 14 ) |
|
|
Immediately |
$ 94.46 |
|
|
| 21 |
3349749 |
|
Restrainer, Base |
|
|
|
$ 11.17 |
|
|

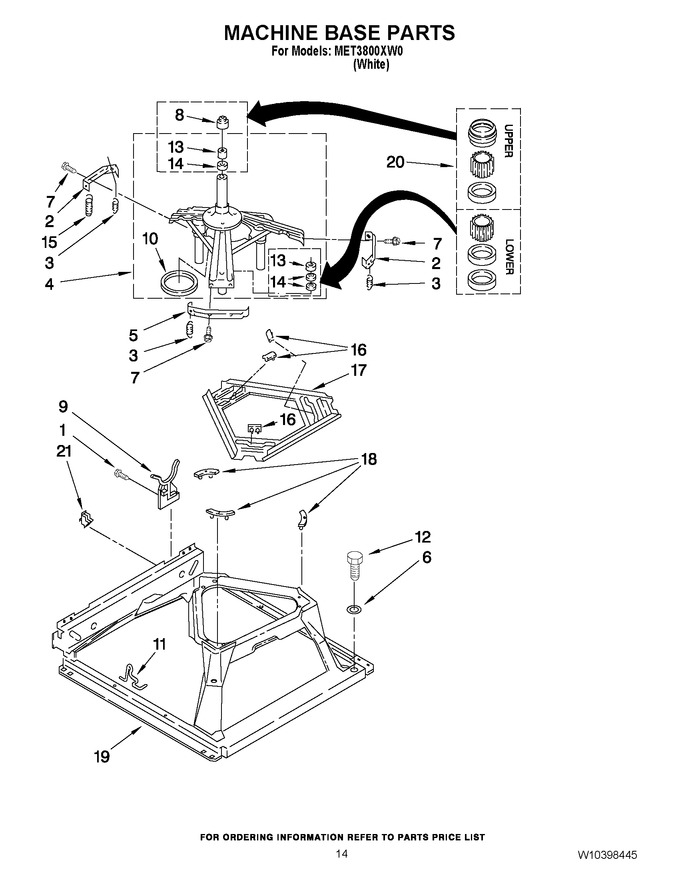

View Diagram in Separate Window
