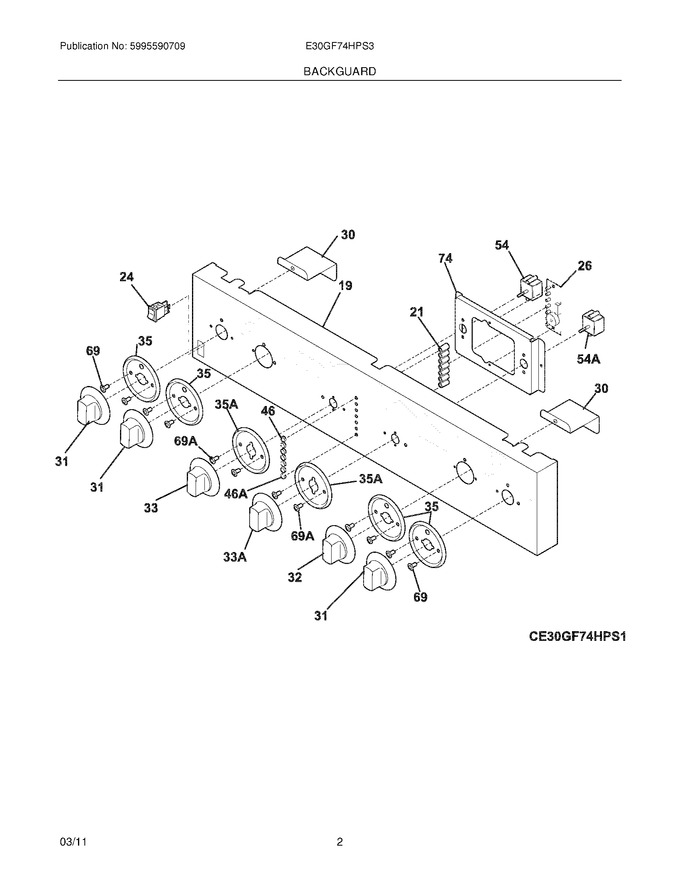

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318285722		Panel,control ,stainless		Appelez-nous	-
21	318389500		Retainer,lens				$ 36.14
30	318377000		Support,control Panel ,(2)		Appelez-nous	-
31	318242252		Knob,control ,stainless ,(4)				$ 132.72
32	318242253		Knob,control ,stainless ,dual ,(2)				$ 141.80
33	318242230		Knob,selector				$ 129.68
35	318251911		Skirt,(4)				$ 73.56
46	318044501		Lens,indicator Light ,blue ,(5)				$ 7.09
69	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
74	318383901		Bracket,controls				$ 68.75
33A	318242231		Knob,control ,oven				$ 92.14
35A	318251912		Skirt,(2)				$ 75.08
46A	318228310		Lens,indicator Light ,(2)			Immediately	$ 22.91
69A	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
F24	5308015487		Switch,oven Light ,rocker				$ 61.43
F26	5304452799		Board,indicator Light ,(2) ,led				$ 333.46
F54	5304452797		Control,oven Selector			Immediately	$ 381.46
F54A	5304452798		Control,oven Temp.			Immediately	$ 376.15
FNI	318532143		Harness,wiring ,display/control				$ 61.45
FNI	318532142		Harness,wiring ,relay Baord				$ 162.84
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
