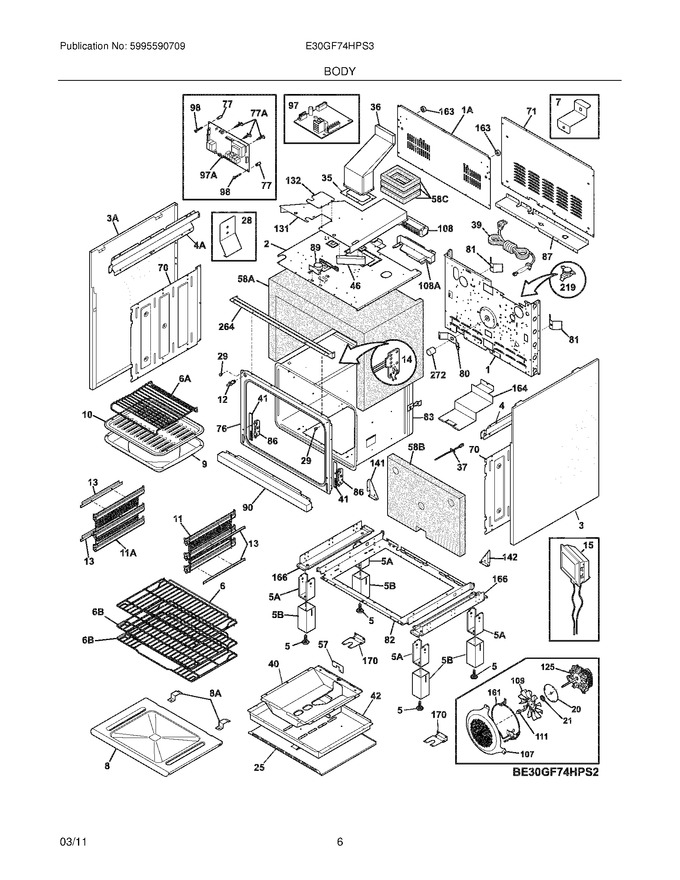

07 - Body


09 - Main Top


11 - Door


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259230		Back,main		Appelez-nous	-
2	318258930		Shield,insulation ,upper		Appelez-nous	-
3	318352702		Panel,side ,stainless ,lh		Appelez-nous	-
4	318356002		Panel,upper Side ,rh		Appelez-nous	-
5	318175506		Screw,leveling				$ 38.28
6	318240104		Shelf,oven ,fixed				$ 155.61
7	318533701		Bracket,main Back ,(4)		Appelez-nous	-
8	318290503		Panel,oven ,bottom   (Replaces: 318290502)		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240020		Glide & Support Assy,oven Shelves ,rh		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
14	318903401		Switch,rack Sensing		Appelez-nous	-
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
25	318291900		Bracket,shield ,lower				$ 94.27
28	318369301		Bracket,side Panel ,(2)		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	318561207		Flue Assembly		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318291800		Box,oven Burner		Appelez-nous	-
41	318366603		Spacer,front Frame   (Replaces: 318366601)		Appelez-nous	-
42	318288710		Box,oven Burner		Appelez-nous	-
46	318258905		Deflector,air		Appelez-nous	-
57	318268300		Cover,burner Opening		Appelez-nous	-
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318300911		Panel,cover		Appelez-nous	-
76	318056232		Front,oven				$ 108.05
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258770		Shield,insulation ,lower				$ 26.46
83	318327023		Liner,oven		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
87	318260633		Bracket,cable Mtg.		Appelez-nous	-
90	318355001		Trim,bottom ,stainless		Appelez-nous	-
98	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
131	318272905		Box,vent		Appelez-nous	-
132	318003004		Plate,shield		Appelez-nous	-
141	318368402		Bracket,reinforcement ,rh		Appelez-nous	-
142	318368403		Bracket,reinforcement ,lh		Appelez-nous	-
163	318531700		Spacer,(2)		Appelez-nous	-
164	318125353		Plate,connection		Appelez-nous	-
166	318352501		Bracket,leveling Leg ,(2) ,reinforcement				$ 57.91
170	318335701		Anti-tip & Accessories				$ 42.89
264	318257723		Trim,oven ,black ,front				$ 67.46
272	318249409		Tube,protector		Appelez-nous	-
11A	318240021		Glide & Support Assy,oven Shelves ,lh		Appelez-nous	-
1A	318353110		Panel,back ,upper		Appelez-nous	-
3A	318352703		Panel,side ,stainless ,rh		Appelez-nous	-
4A	318356003		Panel,upper Side ,lh		Appelez-nous	-
58A	318386103		Insulation,oven Wrapper		Appelez-nous	-
58B	318362131		Insulation,oven Back		Appelez-nous	-
58C	318362153		Insulation,flue ,(3)		Appelez-nous	-
5A	318368800		Bracket,leveling Leg ,(4)				$ 43.20
5B	318352404		Cover,leveling Leg ,(4)				$ 106.65
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318345408		Shelf,oven ,extendable ,(2)				$ 156.29
77A	316114100		Spacer				$ 60.96
8A	318367401		Bracket,retainer ,(2)		Appelez-nous	-
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F125	5304463302		Motor-convection			Immediately	$ 259.95
F161	318255504		Element,convection ,350 W				$ 97.07
F166	5304469857		Screw,no.10-12 X 2 1/4 ,black ,(4)		Appelez-nous	-
F219	318003633		Thermostat,safety				$ 101.35
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F89	318261229		Motor,latch Assy   (Replaces: 318261221)			Immediately	$ 93.62
F97	316519202		Board,relay ,convection				$ 305.44
F97A	316455710		Board,power ,relay		Appelez-nous	-
FNI	318402212		Wiring Harness,main ,latch				$ 40.01
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
FNI	318532123		Harness,wiring ,main		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303325978		Screw,shoulder Head ,8-18 X 1/2		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	3051050		Screw-shoulder				$ 12.29
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5303131801		Screw, 10 X 3/8		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
