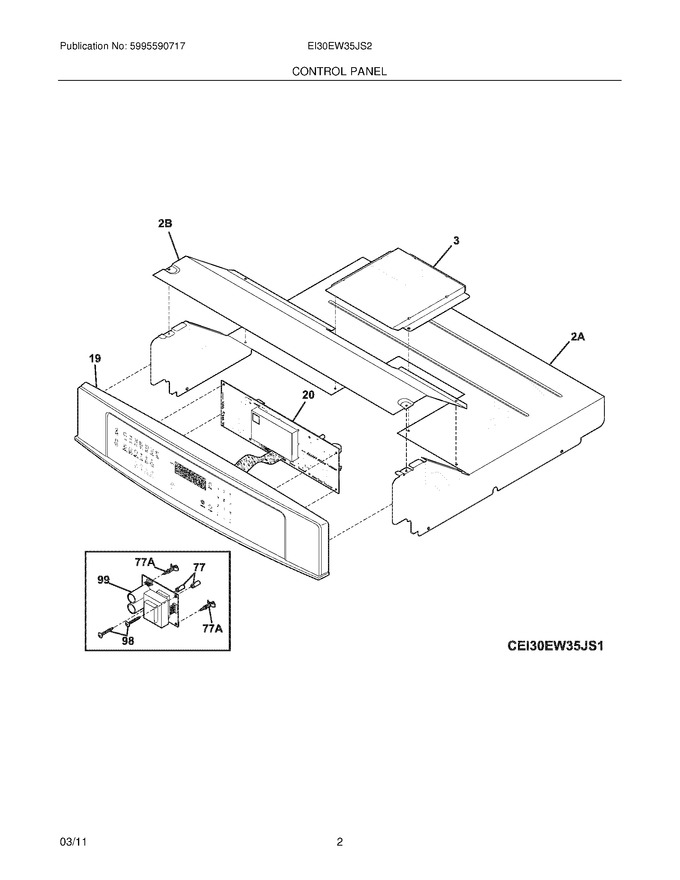

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577800		Box,fan Service		Appelez-nous	-
19	318280439		Control Panel Assy.,glass ,stainless/black,w/membrane		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
98	5303297477		Screw,6-20 X 1 1/4				$ 15.17
2A	318257305		Shield,oven Top		Appelez-nous	-
2B	318260104		Cover,box		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F20	316576624		Controller,electronic ,es630		Appelez-nous	-
F99	316535201		Board,power Supply ,8v				$ 349.42
FNI	318572765		Harness,wiring ,main ,control Panel		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	131892100		Screw,control Mtg ,6-32 X .25 ,(5)   (Replaces: 316524400)		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
