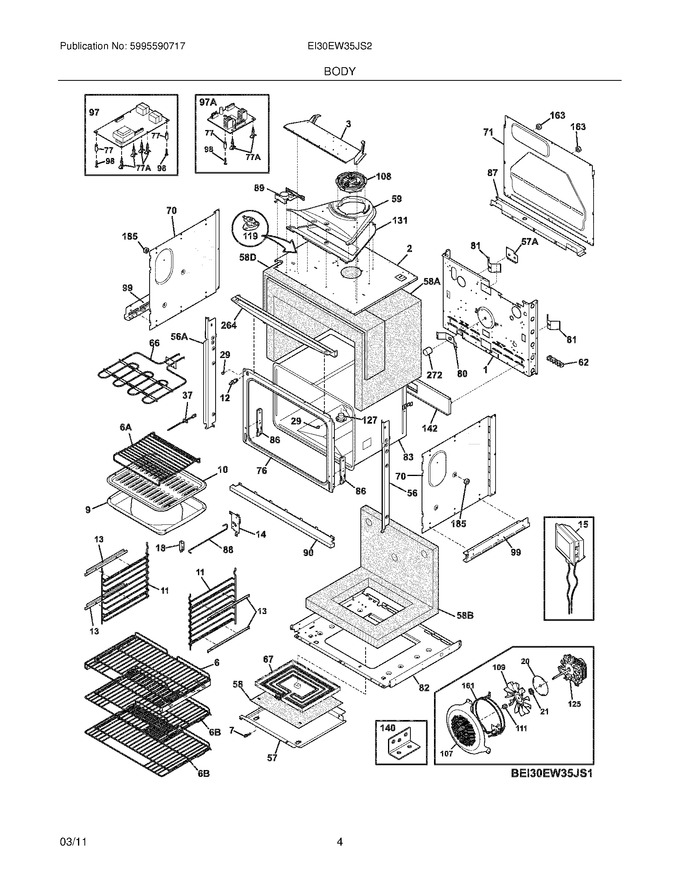

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Body
07 - Door
08 - Wiring Diagram
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main |
|
$ 88.31 | |||||
| 2 | 318570500 | Panel,insualtion ,top |
|
$ 86.89 | |||||
| 3 | 318577700 | Panel,mounting |
|
- | |||||
| 6 | 318903105 | Shelf,oven ,(2) |
|
$ 416.08 | |||||
| 7 | 318368300 | Pin,locking ,(2) |
|
$ 9.93 | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 11 | 318903300 | Rack,oven Shelf ,(2) |
|
$ 105.80 | |||||
| 13 | 318603913 | Bracket,ladder Mtg. ,(4) |
|
$ 66.99 | |||||
| 18 | 318562300 | Bracket,rod |
|
$ 16.87 | |||||
| 20 | 318389400 | Plate,retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal,ring |
|
$ 22.75 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 56 | 318903728 | Trim,side ,stainless ,rh |
|
$ 89.99 | |||||
| 57 | 318361610 | Panel,service |
|
$ 89.82 | |||||
| 58 | 318330501 | Insulation,service Panel ,12.47 X 14.77 |
|
$ 35.32 | |||||
| 59 | 318570600 | Duct,cooling Fan |
|
- | |||||
| 70 | 318259114 | Shield,insulation ,sides ,(2) |
|
$ 96.81 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056298 | Front,oven |
|
- | |||||
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258775 | Shield,insulation ,lower |
|
$ 116.87 | |||||
| 83 | 318261445 | Liner,oven Assy |
|
$ 183.15 | |||||
| 86 | 318241408 | Receptacle,hinge ,(2) |
|
$ 47.41 | |||||
| 87 | 318260622 | Bracket,cable Mtg. |
|
- | |||||
| 88 | 318376505 | Rod,latch |
|
$ 13.72 | |||||
| 90 | 318903514 | Trim,oven Bottom ,stainless |
|
$ 319.27 | |||||
| 98 | 5303297477 | Screw,6-20 X 1 1/4 |
|
$ 15.17 | |||||
| 99 | 318256201 | Bracket,side ,bottom ,(2) |
|
$ 56.70 | |||||
| 107 | 318906601 | Cover,fan |
|
$ 202.63 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318317105 | Adapter Assembly,vent Tube ,w/converter |
|
$ 7.65 | |||||
| 131 | 318574800 | Bottom,cooling Duct |
|
- | |||||
| 140 | 318399310 | Bracket,holding |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 163 | 318531703 | Spacer |
|
- | |||||
| 185 | 318531800 | Spacer,oven Shield ,(2) |
|
$ 12.76 | |||||
| 264 | 318257716 | Trim,oven ,black ,front |
|
- | |||||
| 272 | 318249409 | Tube,protector |
|
- | |||||
| 56A | 318903729 | Trim,side ,stainless ,lh |
|
- | |||||
| 57A | 318402800 | Plate,cover |
|
$ 9.23 | |||||
| 58A | 318386113 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 318362100 | Insulation,rear & Bottom ,oven Wrapper |
|
- | |||||
| 58D | 318372006 | Insulation,1/2`` Thick ,43 X 9.5 |
|
$ 67.28 | |||||
| 6A | 318365800 | Rack,broiler Pan |
|
$ 52.46 | |||||
| 6B | 318908006 | Shelf,oven (Replaces: 318908003) |
|
Immediately | $ 232.91 | ||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F108 | 318575603 | Motor,cooling Fan |
|
Immediately | $ 184.19 | ||||
| F119 | 318578506 | Thermostat,cooling Fan ,105 Deg. |
|
Immediately | $ 58.19 | ||||
| F12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398201) |
|
Immediately | $ 259.95 | ||||
| F14 | 318562200 | Sensor Assy,w/switch ,and Bracket |
|
$ 257.99 | |||||
| F15 | 318241006 | Lamp,oven ,(2) ,halogen |
|
$ 117.71 | |||||
| F161 | 318255511 | Element,convection ,2500 W |
|
Immediately | $ 110.20 | ||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F66 | 318255806 | Element,broil ,4000w |
|
$ 282.09 | |||||
| F67 | 318601604 | Element,hidden Bake ,upper Oven (Replaces: 318601601) |
|
Immediately | $ 260.38 | ||||
| F89 | 318261217 | Motor,latch Assy |
|
- | |||||
| F97 | 316443918 | Board,relay |
|
Immediately | $ 406.62 | ||||
| F97A | 316519200 | Board,variable Speed |
|
Immediately | $ 256.24 | ||||
| FNI | 318946400 | Bulb,halogen ,g9 ,40w ,120v |
|
Immediately | $ 49.32 | ||||
| FNI | 318572732 | Harness,wiring ,main |
|
- | |||||
| FNI | 318231870 | Wiring Harness,bake Element |
|
$ 83.42 | |||||
| FNI | 5304506983 | Box & Wires Assy (Replaces: 318394441) |
|
$ 133.47 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5303288566 | Screw,8 X 1/4 ,(4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 | |||||
| NI | 5304417153 | Screw,shoulder ,8-18 X 1/2 ,(4) |
|
- | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black |
|
Immediately | $ 14.18 | ||||
| NI | 5304435874 | Plate,covering ,probe |
|
- | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5304456367 | Rivet,ladder Bracket ,(8) |
|
$ 13.99 | |||||
| NI | 5304537066 | Lubricant,high Temp ,oven Racks (Replaces: 5304469602) |
|
Immediately | $ 42.62 | ||||
| NI | 5304455945 | Spacer,pad |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- | |||||
| NI | 5304400192 | Retainer,wiring |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 |
