Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10196405 Bowl, Drip (8``-chr)   (Replaces: 74001213) 10 In-Stock Immediately $ 15.56

2 WPW10196406 Bowl, Drip (6``)(w/hole-chr)   (Replaces: 7725P015-60) 10 In-Stock Immediately $ 12.05

2 WPW10196406 Bowl, Drip (6``-chr)   (Replaces: 74001212) 10 In-Stock Immediately $ 12.05

3 WP74004005 Screw   (Replaces: 7118P013-60) 10 Special Order $ 6.95

4 WPY04000035 Element (8``)   (Replaces: Y04000035) 10 Special Order $ 160.60

4 WP9761346 Element, Surface (8``-5t)   (Replaces: 74007159) 12 In-Stock Immediately $ 94.16

5 WPY04000036 Element (6``)   (Replaces: Y04000036) 10 Special Order $ 88.70

5 WPW10345407 Element, Surface (6``)   (Replaces: 74007158) 12 In-Stock Immediately $ 141.79

6 12001676 Kit, Receptacle   (Replaces: 1430306K) 10 In-Stock Immediately $ 28.45

7 3802F085-80 Brace 10 Appelez-nous -
7 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

7 2002W105-81 Top, Main (wht) 10 Appelez-nous -
8 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

8 74003972 Backguard (wht) 10 Appelez-nous -
9 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

9 8010P069-60 Spacer, Hinge (main Top) 10 Special Order $ 8.57

10 74003401 Panel, Control (blk) 10 Appelez-nous -
10 3801F251-51 Bracket, Cntl. Panel 10 Appelez-nous -
10 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

11 WP7101P309-60 Screw   (Replaces: 7101P309-60) 10 In-Stock Immediately $ 6.26

11 74003267 Thermostat 10 Special Order $ 173.85

11 WP74009277 Thermostat   (Replaces: 74009277) 14 Special Order $ 287.67

12 WP7101P309-60 Screw   (Replaces: 7101P309-60) 10 In-Stock Immediately $ 6.26

12 WP7403P239-60 Switch, Infinite (lrg Element)   (Replaces: 7403P239-60) 10 In-Stock Immediately $ 35.10

12 WP7403P238-60 Switch, Infinite (sml Element)   (Replaces: 7403P238-60) 10 In-Stock Immediately $ 57.78

13 74003280 Knob, Thermostat 10 Special Order $ 16.24

13 74009709 Knob, Export (blk-celsius) 10 Appelez-nous -
14 WP7737P030-60 Knob, Switch   (Replaces: 7737P030-60) 10 Special Order $ 17.81

15 74006106 Light, Indicator 10 Appelez-nous -
16 74004827 Clip, Top Locking 10 Appelez-nous -
17 8010P048-60 Spacer, Main Top 10 Appelez-nous -
18 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

18 3807F419-80 Support Upper Front Panel 10 Appelez-nous -
19 7112P029-60 Clip 10 Appelez-nous -
20 3801F243-51 Bracket, Control Panel (lt) 10 Appelez-nous -
20 3801F242-51 Bracket, Control Panel (rt) 10 Appelez-nous -
20 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

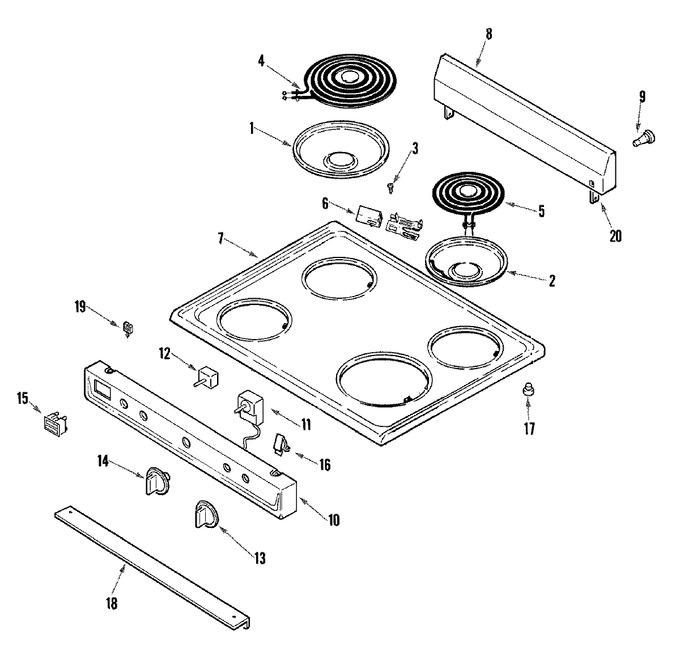

Diagram for AER1110BAH
