Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

1 2401F096-62 Panel, Door (wht) 10 Appelez-nous -
2 WP2411F013-70 Handle, Door (chr)   (Replaces: 74007090) 10 Special Order $ 186.01

3 8010P084-60 Spacer, Handle (blk) 10 Appelez-nous -
4 WP3387230 Screw   (Replaces: 74002483) 10 In-Stock Immediately $ 7.69

5 4804F050-60 Insulation, Door 2`` 10 Appelez-nous -
6 74003240 Lining, Door 10 Appelez-nous -
7 WP7212P043-60 Seal, Door   (Replaces: 7212P043-60) 10 In-Stock Immediately $ 56.83

8 74003407 Panel, Drawer (wht) 10 Appelez-nous -
9 7112P034-60 Clip, Door 10 Appelez-nous -
10 71003042 Drawer, Storage 10 Appelez-nous -
11 WP7101P072-60 Screw   (Replaces: 7101P072-60) 10 Special Order $ 6.77

12 8010P085-60 Spacer, Rubber 10 Appelez-nous -
13 WP488130 Nut   (Replaces: 7103P082-60) 10 Special Order $ 6.27

13 74003566 Roller, Drawer 10 Appelez-nous -
NI WPW10131078 Nut, Lock   (Replaces: 7103P139-60) 10 Special Order $ 4.00


    View Diagram in Separate Window     Print Icon   Print Part List

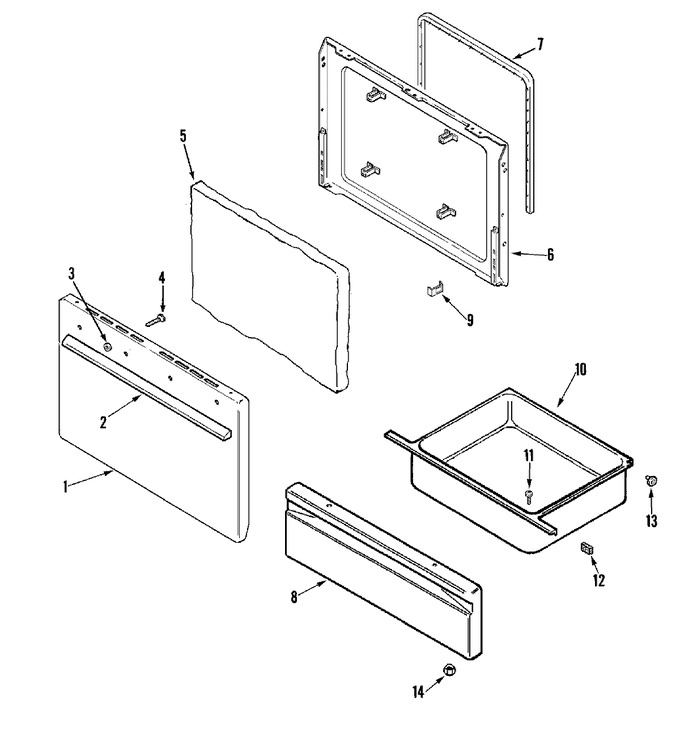

Diagram for AER1110BAH
