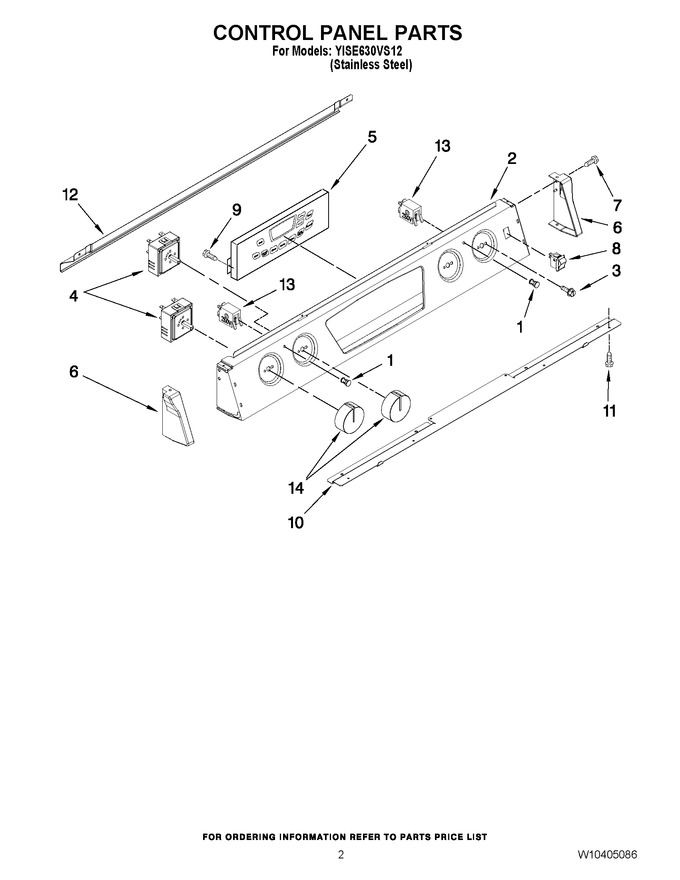

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 2 | W10159611 | Panel, Control |
|
$ 135.52 | |||||
| 3 | WP7101P309-60 | Screw, Switch (10) (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 4 | WP7403P239-60 | Switch, Infinite (8`` (rf/lr)(2)) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 4 | WP7403P238-60 | Switch, Infinite (6`` (lf/rr)(2)) (Replaces: 7403P373-60) |
|
Immediately | $ 57.78 | ||||
| 5 | W10769823 | Control W/ Overlay (Replaces: W10197041) |
|
Immediately | $ 253.24 | ||||
| 5 | W10182533 | Control W/ Overlay |
|
- | |||||
| 6 | 7726P400-60 | End Cap (right) |
|
$ 32.99 | |||||
| 6 | 7726P401-60 | End Cap (left) |
|
$ 23.44 | |||||
| 7 | WP98008545 | Screw, End Cap (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 8 | 7403P798-60 | Switch, Rocker |
|
- | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 7101P077-60) |
|
$ 6.98 | |||||
| 10 | 3807F601-51 | Support, Control Panel |
|
- | |||||
| 11 | WP90767 | Screw, Support (Replaces: W10116760) |
|
Immediately | $ 7.04 | ||||
| 12 | 3604F421-51 | Shield, Vent |
|
$ 32.71 | |||||
| 13 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 14 | W10159625 | Knob (4) |
|
$ 20.39 |
