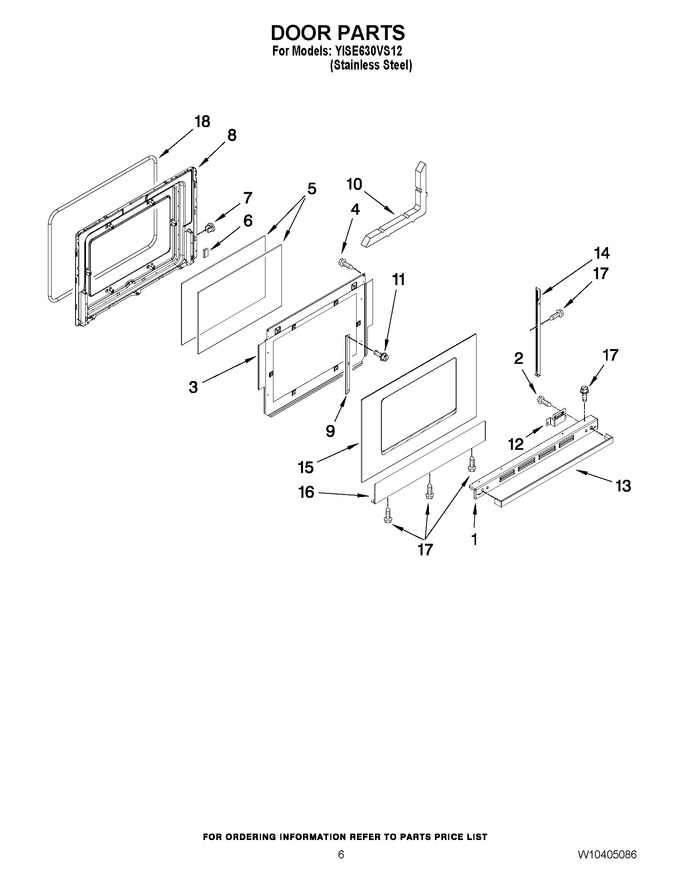

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165419 | Trim, Door Top |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 7101P544-60) |
|
$ 7.29 | |||||
| 3 | 3601F353-45 | Baffle, Retainer |
|
$ 128.19 | |||||
| 4 | WP7101P072-60 | Screw, 8ab X 1/2 (Replaces: 7101P072-60) |
|
$ 6.77 | |||||
| 5 | 7902P472-60 | Glass, Inner (2) |
|
- | |||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 8 | 2402W271-19 | Lining, Door |
|
$ 140.85 | |||||
| 9 | 3801F886-51 | Bracket, Glass (2) |
|
$ 38.25 | |||||
| 10 | 7002P221-60 | Insulation, Door |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | 3801F832-45 | Bracket, Handle (left) |
|
$ 19.12 | |||||
| 12 | 3801F831-45 | Bracket, Handle (right) |
|
$ 19.17 | |||||
| 13 | W10184494 | Handle, Door |
|
$ 65.42 | |||||
| 14 | 3608F116-70 | Trim, Door Side (right) |
|
$ 49.75 | |||||
| 14 | 3608F117-70 | Trim, Door Side (left) |
|
$ 49.73 | |||||
| 15 | 2402W271-19 | Glass, Door |
|
$ 140.85 | |||||
| 16 | W10190750 | Panel, Oven Door (bottom) |
|
$ 155.24 | |||||
| 17 | N/P | Screw, Trim |
|
- | |||||
| 18 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 |
