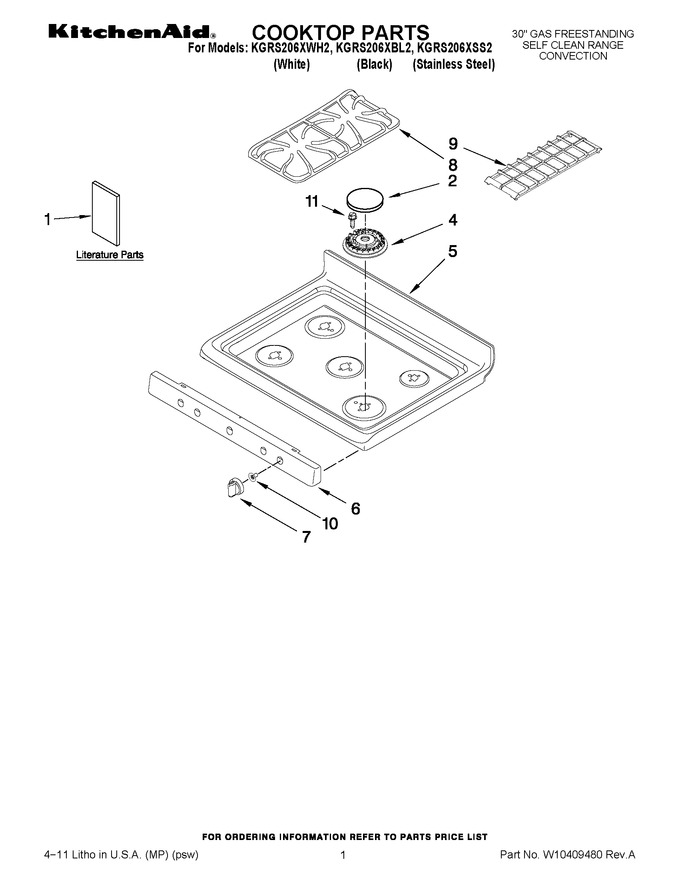

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328280 | Owners Manual |
|
- | |||||
| 1 | W10346742 | Tech Sheet |
|
- | |||||
| 1 | W10344643 | Installation Instructions |
|
- | |||||
| 2 | WPW10347755 | Cap, Burner (12k(lr)) (Replaces: W10347755) |
|
$ 141.13 | |||||
| 2 | WPW10347764 | Cap, Burner (9.5k(lf & Center) (Replaces: W10347764) |
|
$ 116.87 | |||||
| 2 | W10347754 | Cap, Burner (5k(rr) |
|
$ 26.32 | |||||
| 2 | WPW10347750 | Cap, Burner (17k (rf) (Replaces: W10347750) |
|
$ 90.09 | |||||
| 4 | W10345846 | Burner (5k (rr) |
|
$ 59.98 | |||||
| 4 | WPW10345847 | Burner (12k (lr)) (Replaces: W10345847) |
|
$ 83.66 | |||||
| 4 | W10345848 | Burner (9.5k(lf & Center) |
|
$ 76.23 | |||||
| 4 | W10345845 | Burner (16/17k (rf) |
|
$ 94.95 | |||||
| 5 | W10347693 | Cooktop (white) |
|
$ 201.82 | |||||
| 5 | W10347690 | Cooktop (black) |
|
- | |||||
| 6 | W10355920 | Panel, Manifold (stainless Steel) |
|
- | |||||
| 6 | W10370190 | Panel, Manifold (black) |
|
- | |||||
| 6 | W10370357 | Panel, Manifold (white) |
|
- | |||||
| 7 | W10340813 | Knob, Control White (4) |
|
$ 17.65 | |||||
| 7 | W10340816 | Knob, Control White (1) |
|
$ 110.78 | |||||
| 7 | W10351694 | Knob, Control S.steel (4) |
|
$ 20.23 | |||||
| 7 | W10351695 | Knob, Control S.steel (1) |
|
$ 19.11 | |||||
| 7 | W10340815 | Knob, Control Black (1) |
|
$ 19.06 | |||||
| 7 | W10340812 | Knob, Control Black (4) |
|
- | |||||
| 8 | W10347694 | Grate, Burner Black, Side |
|
$ 133.02 | |||||
| 9 | W10347695 | Grate, Burner Black, Center |
|
$ 133.02 | |||||
| 10 | W10351722 | Shield, Heat-knob (stainless Model Only) |
|
- | |||||
| 11 | W10345998 | Screw, Burner Head |
|
- |
