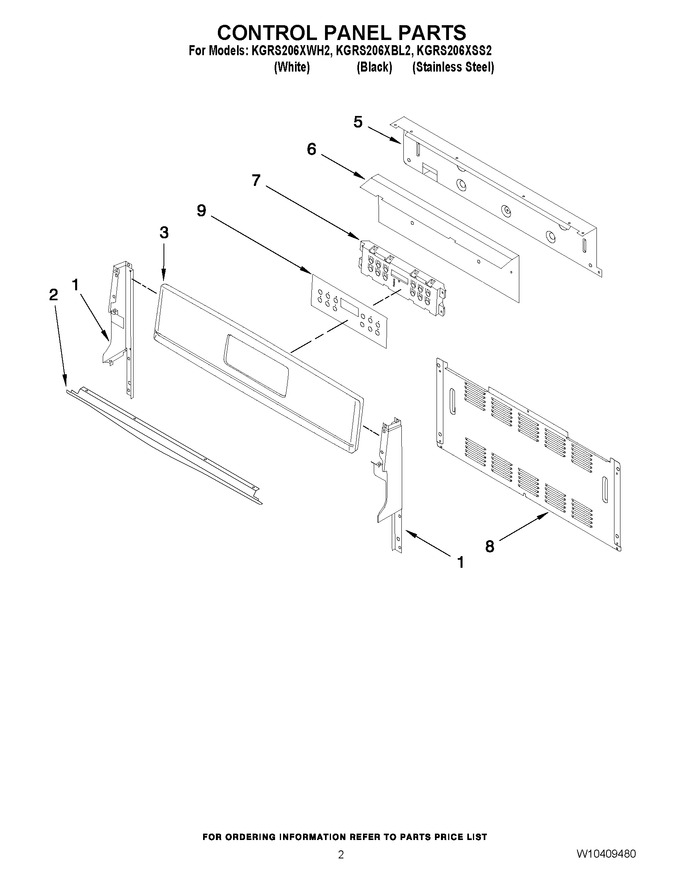

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10340740 | Endcap, Left Hand (black) |
|
- | |||||
| 1 | W10340744 | Endcap, Left Hand (white) |
|
- | |||||
| 1 | W10340735 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | W10340736 | Endcap, Right Hand (white) |
|
- | |||||
| 2 | W10340823 | Heat Shield,visor (black) |
|
$ 31.94 | |||||
| 2 | W10340824 | Heat Shield,visor (gray) |
|
- | |||||
| 3 | W10340759 | Panel, Backguard (black) |
|
- | |||||
| 3 | W10340763 | Panel, Backguard (white) |
|
- | |||||
| 3 | W10351683 | Panel, Backguard (stainless Steel) |
|
- | |||||
| 5 | W10340844 | Heat Shield |
|
- | |||||
| 6 | W10340724 | Rear Cover |
|
- | |||||
| 7 | W10340766 | Control |
|
- | |||||
| 8 | W10315160 | Cover, Main Wire |
|
$ 56.47 | |||||
| 9 | W10340771 | Overlay |
|
- |
