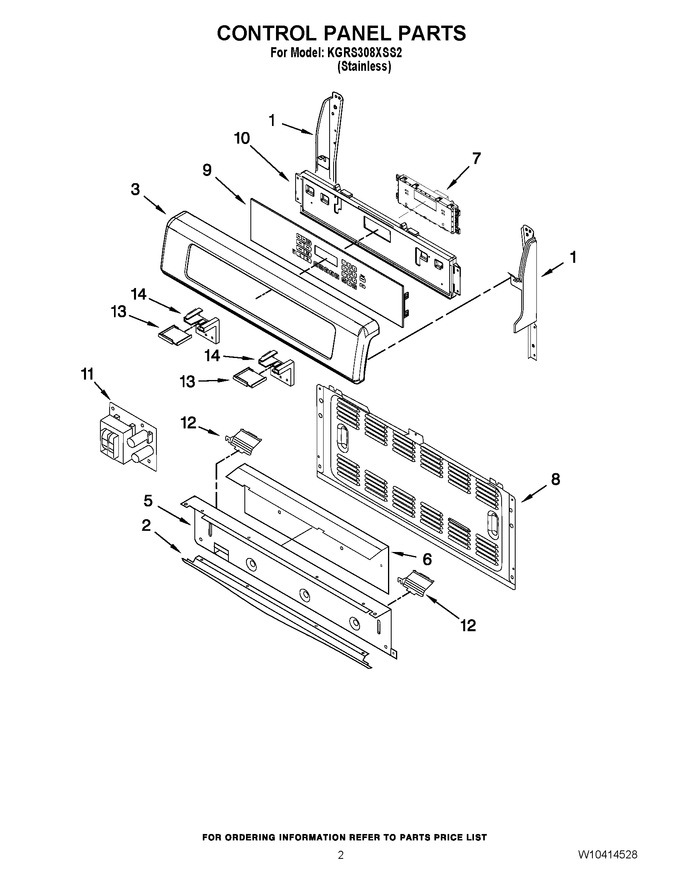

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10340735 | Endcap, Right Hand (black) |
|
- | |||||
| 1 | W10340740 | Endcap, Left Hand (black) |
|
- | |||||
| 2 | W10340823 | Heat Shield,visor (black) |
|
$ 31.94 | |||||
| 3 | W10356237 | Panel, Backguard (stainless) |
|
$ 171.10 | |||||
| 5 | W10340844 | Heat Shield |
|
- | |||||
| 6 | W10340724 | Rear Cover |
|
- | |||||
| 7 | W10356238 | Control |
|
$ 387.51 | |||||
| 8 | W10315160 | Cover, Main Wire |
|
$ 56.47 | |||||
| 9 | WPW10361694 | Panel, Touchscreen (Replaces: W10361694) |
|
$ 535.40 | |||||
| 10 | W10356231 | Support, Control |
|
$ 94.70 | |||||
| 11 | WPW10355192 | Board, Power (Replaces: W10355192) |
|
$ 223.26 | |||||
| 12 | W10355162 | Bracket, Mount |
|
- | |||||
| 13 | W10355148 | Bracket, Mount |
|
- | |||||
| 14 | W10356243 | Bracket, Support |
|
- |
